300T Cement Silo

  • Type:300
  • Volume:300t
  • Tank diameter:5.5m
  • Tank height:13.4m
  • Match the host:JS3000
  • Match the screw conveyor:LSY300-9

Cement silo applies to engineering construction concrete mixing plants roads and bridges water conservancy urban construction and other projects.

It is also suitable for storing grain cement fly ash and other bulk materials.

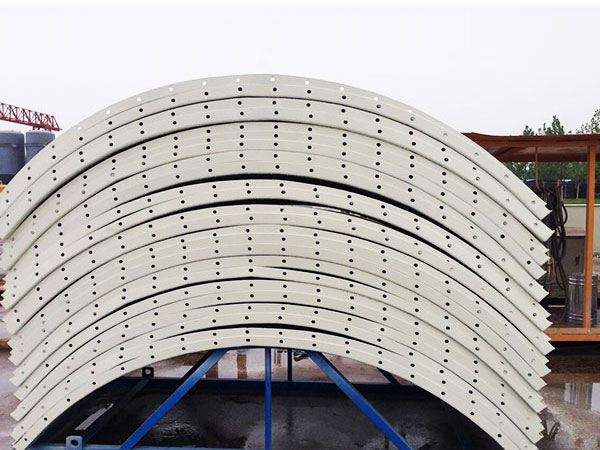

  1. The sheet-assembled cement silo is designed for resolving the difficulties in export packing on-site silo making construction site transferring extra-high and extra-wide transportation.
  2. It is a kind of closed storage tank which is waterproof moistureproof prevent the loss of cement reduce urban air pollution small footprint long service life and low cost. It is the environmental friendly construction machinery promoted widely in China.
  3. It has the materials level meter which can display the location and quantity of the materials. And the safety valve on the top of cement silo is used to balance the pressure difference between inside and outside.
  4. We have a lot of stock of bulk cement silo in general Capacity :50t,100t150t 200t  300t. It can be produced in different size according to user’s requirements.

Working Process:

  1. Bulk cement truck transports the cement to the site.
  2. Conveying the cement in truck to cement silo by the air pressure of the truck.
  3. Conveying the cement in cement silo to the concrete mixer by the screw conveyor.

Type Volume Tank diameter Tank height Match the host Match the screw conveyor
300 300t 5.5m 13.4m JS3000 LSY300-9
