SCS digital electronic truck scale (wagon balance) is a new generation of steel structure scale, which is designed with U-shaped cold-formed channel steel, grouped into multiple closed cavities, so that the truck scale (wagon balance) platform is in overall steel, various performance indexes such as bending resistance and partial compression of the table top have been greatly improved.
Widely used in inbound and outbound materials, inventory measurement, production monitoring and data management for ports, factories, mixing plant, freight yards, storage terminals, workshops, warehouses, etc. It is suitable for weighing and measuring vehicles such as trucks, trailers, semi-trailers and container vehicles.

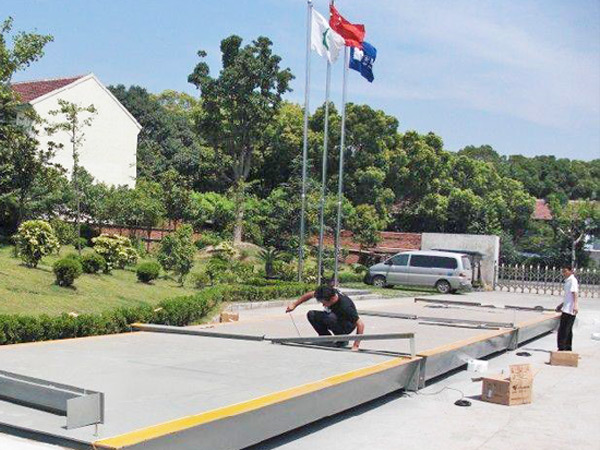

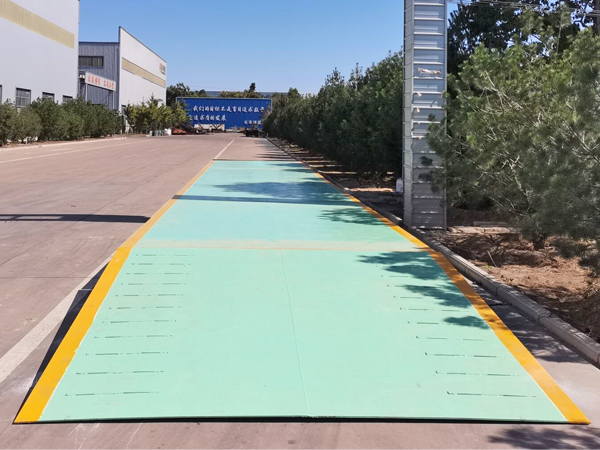

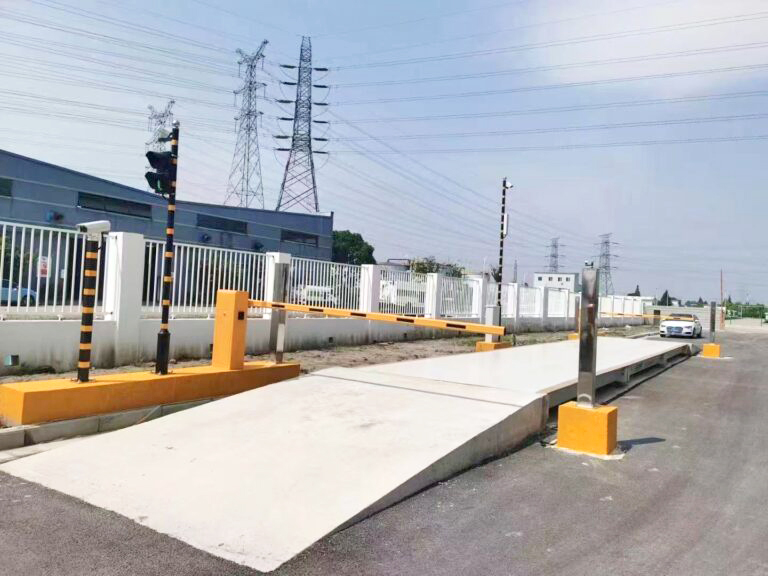

1. Platform scale construction (without foundation pit)
Advantages: easy to drain, maintain and clean up.
Disadvantages: large area occupied.
2. Underground balance construction (with foundation pit)
Advantages: save space, good surface looking.
Disadvantages: not easy to drain, repair and clean, manhole safety hazard.
List of SCS standard vehicle scale specifications and model:
| Model | Accuracy | Weighing platform spec. (m) | Maximum weighing (T) | Minimum weighing (T) | Resolation (kg) |
| SCS-10 | III | 2.2×5 | 10 | 100 | 5 |
| SCS-20 | III | 2.5×5 | 20 | 100 | 5 |
| SCS-30 | III | 2.5×6 | 30 | 100 | 5 |
| SCS-40 | III | 3×6 | 40 | 400 | 10 |
| SCS-50 | III | 3×8 | 50 | 400 | 10 |
| SCS-60 | III | 3×9 | 60 | 400 | 10 |
| SCS-80 | III | 3×10 | 80 | 400 | 20 |
| SCS-100 | III | 3×12 | 100 | 1000 | 20 |
| SCS-100 | III | 3×14 | 100 | 1000 | 20 |
| SCS-100 | III | 3×15 | 100 | 1000 | 20-50 |
| SCS-100 | III | 3×16 | 100 | 1000 | 20-50 |
| SCS-120 | III | 3×16 | 120 | 1000 | 20-50 |
| SCS-120 | III | 3×18 | 120 | 1000 | 20-50 |
| SCS-150 | III | 3×16 | 150 | 1000 | 50 |
| SCS-150 | III | 3×18 | 150 | 1000 | 50 |
| SCS-200 | III | 3×16 | 200 | 1000 | 50 |
| SCS-200 | III | 3×18 | 200 | 1000 | 50 |
Detailed technical parameters are as follows:
| Specifications Model | ZCS/SCS 5t-300t |
| Maximum Weighing | 300t |
| Minimum Weighing | 200kg |
| Test Index | 20kg |
| Actual scale value | 10kg |
| Safety Overload | 120%FS |
| Ultimate Overload | 150%FS |
| Table Thickness | customized |

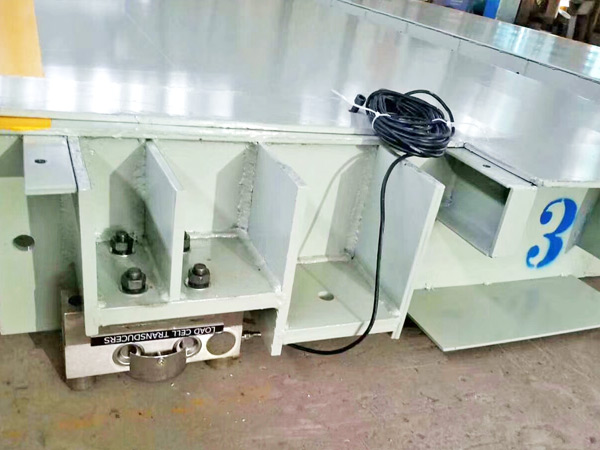

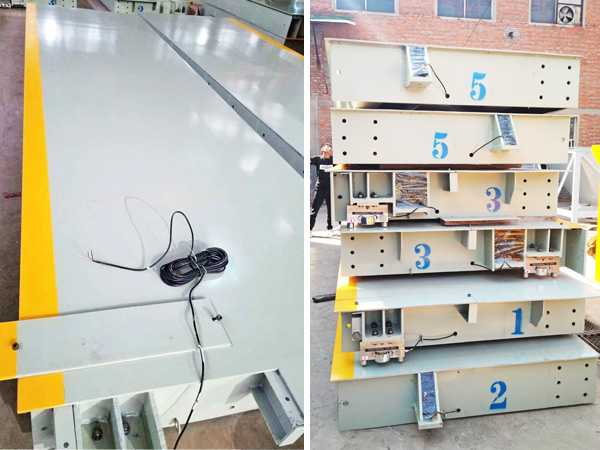

| Scale Body Structure | U-beam structure is made of Q235A carbon steel |
| Main Beam Specification | 200mmU-300mm, U-shaped steel beam, carbon steel Q235A material |
| Foundation Form | Without foundation pit, shallow foundation pit |
| Accuracy Class | C3, OIML, III (high precision and sensitivity) |
| Power Supply | 220VAC(–15%~+10%), 50HZ±2% |
