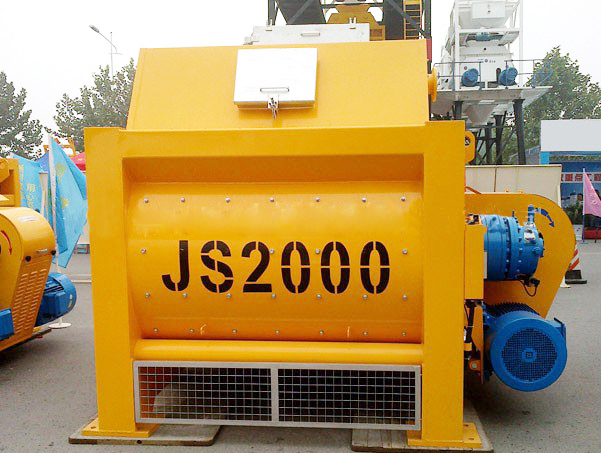

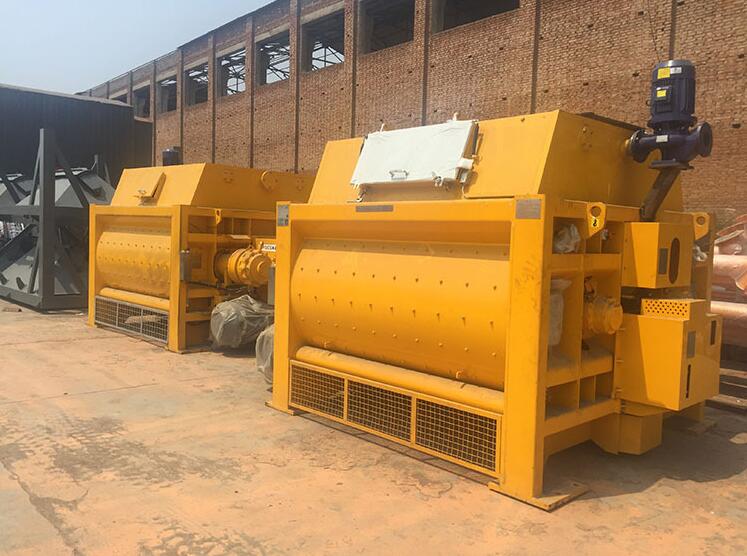

JS2000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 120m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.
It can work independently or in HZS120 concrete batching plant with PLD3200 batching machine.
| Model | JS2000 |
| Discharging capacity | 2000L |
| Drum capacity | 3200L |
| Productivity (m3 /h ) | ≥120 |
| Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤80/100 |
| Operation Recycle Time(S) | 60 |
| Dimension Transport State (mm) | 3500*2400*2152 |
| Weight(kg) | 7500 |
| Mixing Blade Rotate Speed | 24.5r/min |
| Mixing Blade Number | 2×8 |
| Mixing Motor Model | Y250M-6 |
| Mixing Motor Power | 2×37 |
| Discharging Height | 4300mm |
