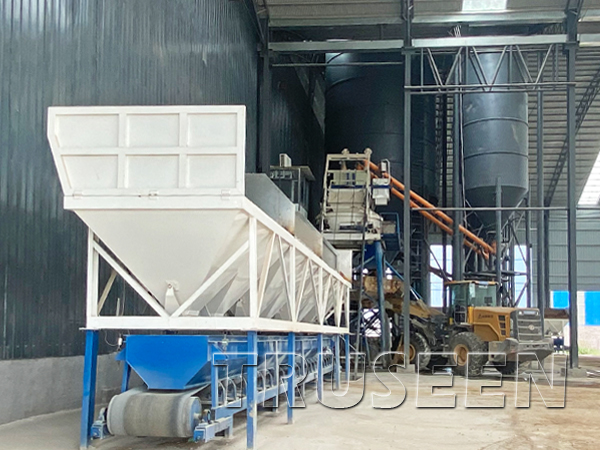

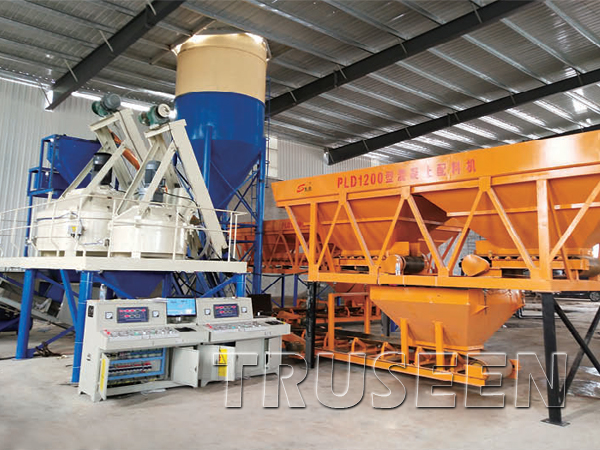

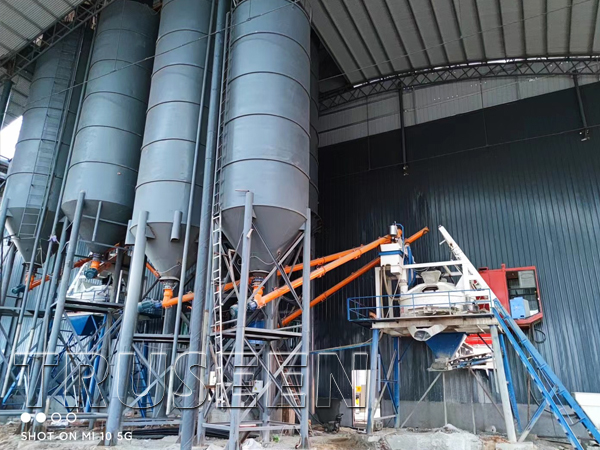

Precast Concrete Batching Plant

  • Cement Precast Batching Plant
  • Theoretical Productivity (m³/h) : 20-180
  • Mixer Model : MP500-MP3000
  • Max Aggregate Size(mm): 60-120
  • Total Power(kw):58-272
  • Discharge Height (m):3.8-3.9

The cement precast batching plant uses vertical shafts type planetary mixer, it has high-precision metering system, perfect intelligent management system, temperature and humidity controller. It can set several discharge doors to supply  different  concrete production lines and meet the request of environment protecting design.

Cement precast batching plant is widely used in precast concrete, high performance concrete, refractory materials, ceramics and other industries, which can solve the problem of material high uniformity requirements in mixing process.



Cement Precast Batching Plant Features:

1.Vertical shafts type planetary mixer

2.high-precision metering system

3.Perfect intelligent management system

4.Temperature and humidity controller

5.Can set several discharge doors to supply different concrete production lines

6.Environment protecting design

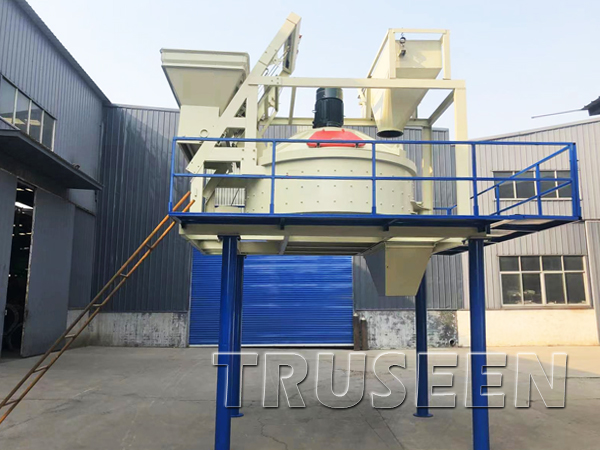

Vertical Shafts Planetary Mixer Features:

1.High quality : special high-strengthen reducer ,faster mixing speed and more uniform mixing.

2.More bearable: high nickle-alloy mixing blades is more anti-abrasive.

3.Wide mixing range:can mix different kinds of special aggregates.

4.Easy  maintain :special designed high-pressure nozzle covers large area, and easy to clean.

5.Long service life:The whole machine has a long service life, more durable, and higher mixing accuracy.

Capacity (m³/h)

20 30 40 50 75 90 120 180
Mixer Model MP500 MP750 MP1000 MP1000 MP1500 MP1500 MP2000

MP3000

Max Aggregate Size(mm)

60 60/80 60/80 60/80 60 60/80 120 120
Batching Machine PLD800 PLD1200 PLD1600 PLD1600 PLD2400 PLD2400 PLD3200 PLD4800

Total Power(kw)

58 74 100 110 158 164 229 272
Discharge Height (m) 3.8 3.9 3.9 3.9 3.8 3.9 3.9

3.9
