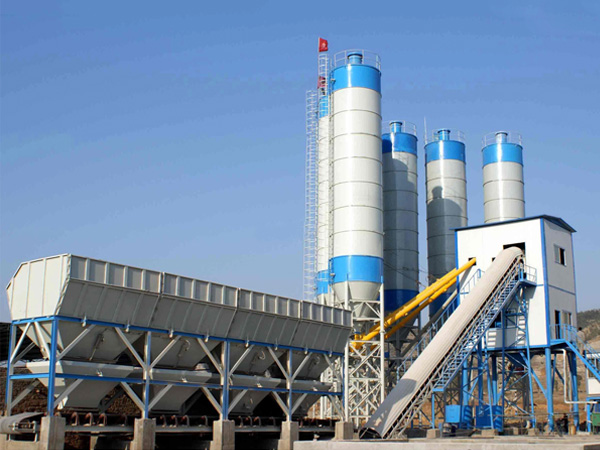

120m³/h Concrete Batching Plant

  • HZS120 Concrete Mixing Plant
  • Maximum productivity(m³/h): 120
  • Discharging height(m): 4.2
  • Working cycle time(s): 60
  • Outline dimension(mm): 60210×13700×18704
  • Total power (kw): 210
  • Total weight: 52T
  • with high performance cost ratio for construction projects

TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h with one mixer.

In addition, the capacity of Stationary Concrete Batching Plants can be from 240 m³/h to 360 m³/h with double mixers on the same chassis.

HZS120 Stationary Type Concrete Batching Plant are mostly preferred for high capacity concrete production requirements for special projects and for the projects which will take a long time in the same location.

Theory Capacity:120m³/h
It is composed of mixing, batching and electrical control system etc.

The Mixing System: The mixer is JS2000 twin horizontal shaft compulsory mixer with high capacity but less time. Belt feeding and adjustable hydraulic discharge door.

Batching System: PLD3200/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.The batching aggregates can be 3-5types.

Weighing system: The system is with buffering device auto compensation function and very high weighing accuracy.

The Quantity of cement silo and screw conveyor can be choosed by users.
Modular Design is easy to install and remove.
All above features spark HZS120 automatically. It also has best cost performance.

 Model  HZS120
 Global parameter (m3/h)  Maximum productivity  120
 Discharging height(m)  4.2
 Working cycle time(s)  60
 Outline dimension(mm)  60210×13700×18704
 Total power (kw)  210
 Mixer  Model  JS2000
 Batcher  Model  PLD3200
 Pneumatic system  Air compressor  1.8–7
 Discharge pressure(MPa)  0.8
 Displacement(m3/min)  1.67
 Motor power  11×2
 Measurement system  Aggregate weighing accuracy  ±2%
 Cement weighing accuracy  ±1%
 Water weighing accuracy  ±1%
 Additive weighing accuracy  ±1%
 Total weight  52T
