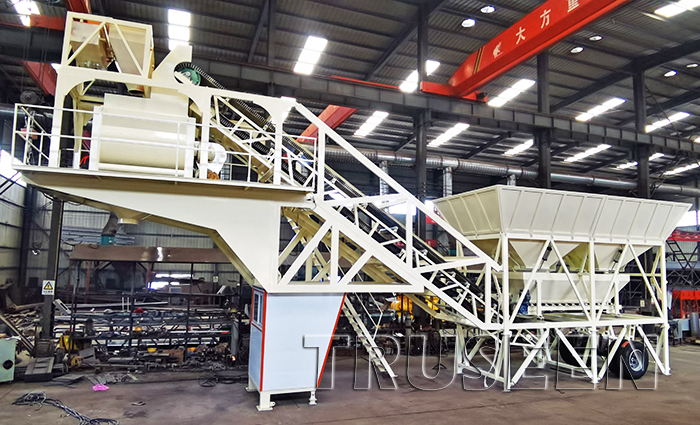

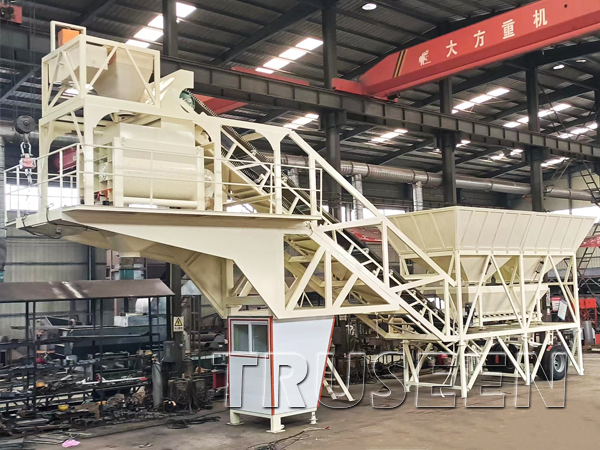

50m3/h Mobile Concrete Batching Plant

  • HZS50 Mobile Concrete Batching Plant
  • Theoretical Productivity (m³/h) : 50
  • Mixer Model : JS1000
  • Mixer Power (kW) : 2×18.5
  • Mixing Cycle Period (s) : 72
  • Max.Aggregate Size (mm) : Φ80
  • Discharging Height (m) : 1.5-4.2

The mobile concrete batching plant has high flexibility, it is very convenient to transfer between various construction projects.It is also very convenient to disassemble and install. The mobile concrete mixing plant does not need complex ground foundation, which saves time and money. Therefore, portable concrete batching plant has lower price than stationary concrete plant with the same capacity.

HZS50 mobile concrete batching plant is a new type of batching plant, it is a fully automatic concrete mixing equipment composed of batching, mixing, electrical control and other parts.Without foundation and commissioning enables convenient movement and quick installation.

It is widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.



Features:

  1. HZS50 mobile concrete batching plant is easy to be removed from one site to another with the help of chassis with wheels.
  2. Without foundation,compact structure, stable and reliable overall structure.
  3. All installation and commissioning can be completed in 6 hours.
  4. With belt type conveyor system, the conveying speed will be greatly improved and improve the efficiency.

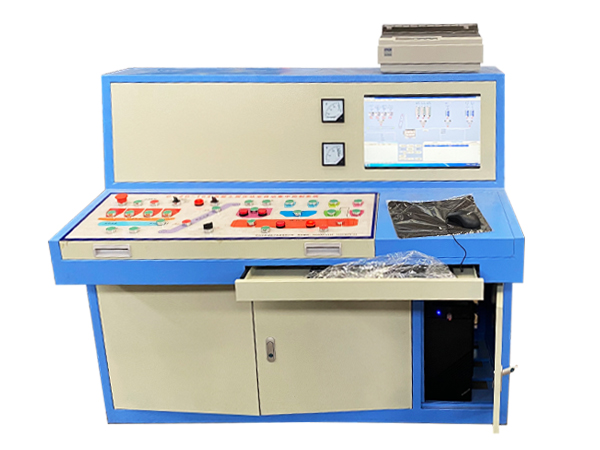

  5. Professional embedded computer, which can be operated manually or automatically which will meet a variety of needs. And the control system has the data backup function at sudden power outage which can effectively prevent data destruction.
  6. Automatic storage management can record operational process. And automatically maintenance warning system can remind operators.

Theoretical Productivity

50m3/h

Mixer Model

JS1000

Mixer Power

18.5kw

Mixing Cycle Period

72s

Mixer Capacity

1000L
Max.Aggregate Size

Φ80mm

Single Powder Silo Capacity

100t
Aggregate Hopper Capacity

5m³

Discharging Height

1.5-4.2m
Installed Power

80kw

Aggregate Weighing Range And Accuracy

(03000Kg)±2%
Cement Weighing Range And Accuracy

(01500 Kg)±1%

Water Weighing Range And Accuracy

(0200 Kg)±1%

Additive Weighing Range And Accuracy

(040 Kg)±1%
