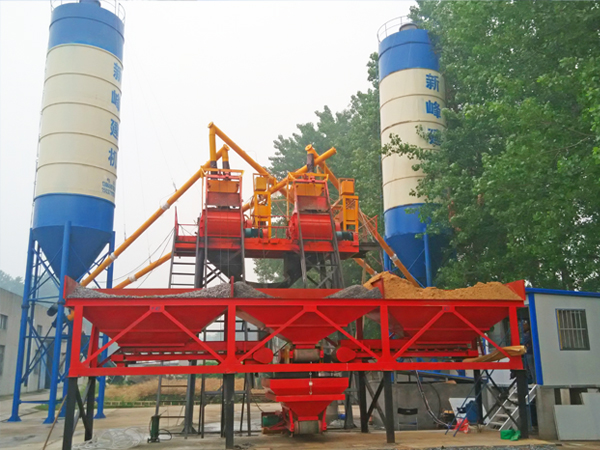

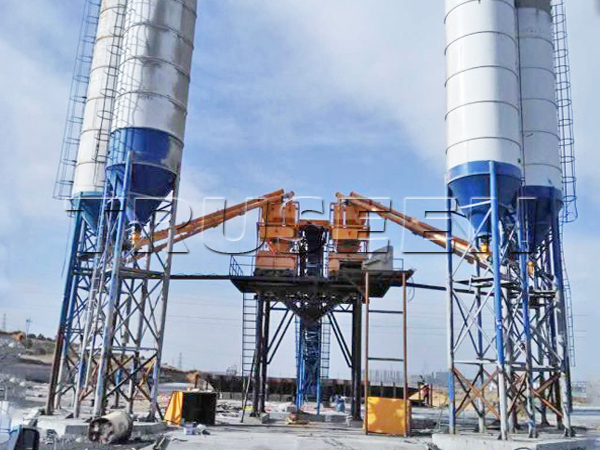

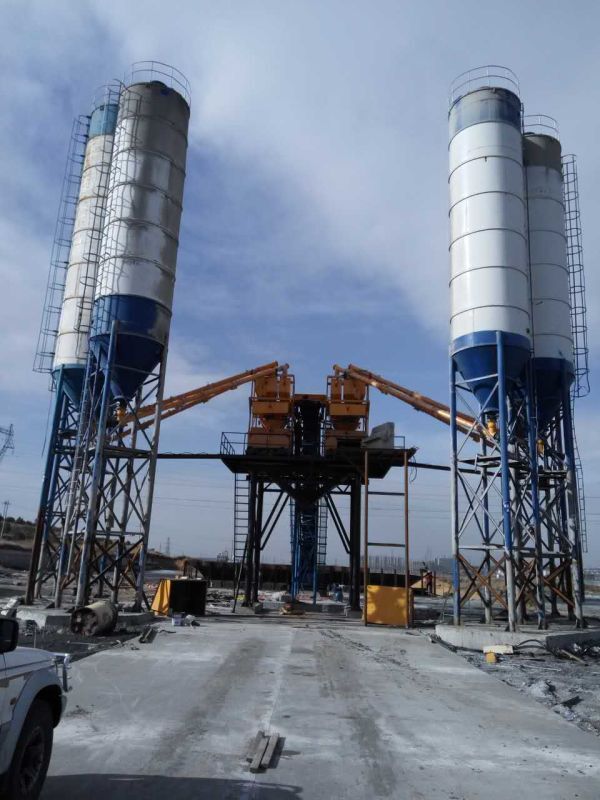

150m³/h Concrete Batching Plant

  • HZS150 Concrete Mixing Plant
  • Maximum productivity(m³/h): 150
  • Discharging height(m): 4.5
  • Working cycle time(s): 60
  • Total power (kw): 175
  • Total weight: 50T
  • with high performance cost ratio for construction projects.

TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.

In addition, the capacity  of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

HZS150 Stationary Type Concrete Batching Plant are mostly preferred for high capacity concrete production requirements for special projects and for the projects which will take a long time in the same location.

Theory Capacity: 150m³/h
It is composed of mixing,batching and electrical control system etc.

The Mixing System: The mixer is double JS1500 twin horizontal shaft compulsory mixer with high capacity but less time.

Batching System: PLD2400/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.The batching aggregates can be 3-5types.

Weighing system: The system is with buffering device auto compensation function and very high weighing accuracy.

The Quantity of cement silo and screw conveyor can be choosed by users.
Modular design can save the space and easy to install and remove.
All above are the features of HZS150. It really has the high cost performance.

 Model  HZS150
 Global parameter (m3/h)  Maximum productivity  150
 Discharging height(m)  4.5
 Working cycle time(s)  60
 Total power (kw)  175
 Mixer  Model  JS1500*2
 Batcher  Model  PLD2400
 Pneumatic system  Air compressor  1.8–7
 Discharge pressure(MPa)  0.8
 Displacement(m3/min)  1.67
 Motor power  11
 Measurement system  Aggregate weighing accuracy  ±2%
 Cement weighing accuracy  ±1%
 Water weighing accuracy  ±1%
 Additive weighing accuracy  ±1%
 Total weight  50T
