50m³/h Concrete Batching Plant

  • HZS50 Concrete Mixing Plant
  • Maximum productivity (m³/h): 50
  • Discharging height (m): 4.2
  • Working cycle time (s): 72
  • Outline dimension (mm): 15689×12500×18704
  • Total power (kw): 88
  • Total weight: 28T

with high performance cost ratio for construction projects

Leave Message Chat Online

TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h with one mixer. In addition, the capacity of Stationary Concrete Batching Plants can be from 240 m³/h to 360 m³/h with double mixers on the same chassis.

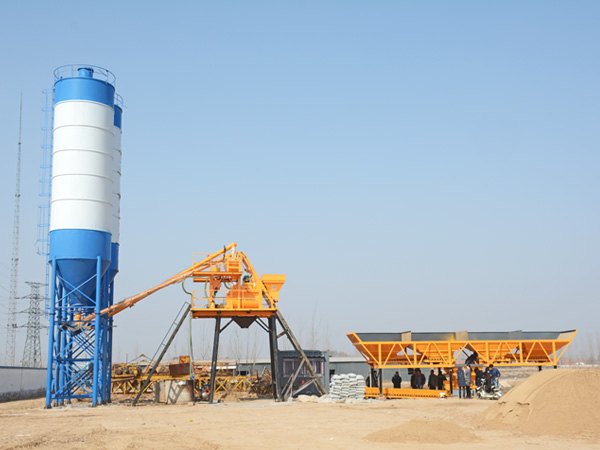

HZS50 concrete batching plant is one of the best-selling plant. It mainly used in projects such as roads, bridges and other large construction projects.

Theory Capacity: 50m³/h

  • It is composed of mixing, batching and electrical control system etc.
  • Adopting twin shaft & double motors make it gets higher mixing power.

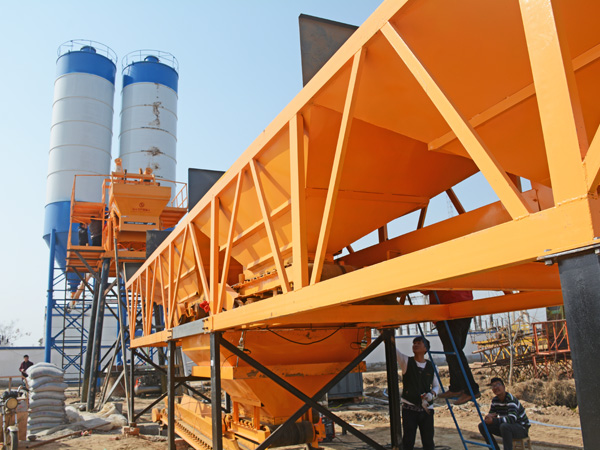

  • Hopper feeder ensures small layout room under limited cost making whole plant easily working effective.
  • Electrical control system main components are all imported reliable performance easy operation the print function.
  • Aluminum alloy butterfly valve & accurate weighing device work automatically with PLD1600 feeder/PLC+PC system.
  • The quantity of cement silo and screw conveyor can be choosed by users.
  • Modular design is easy to install and remove.

All above features spark HZS50 automatically. It also has best cost performance.

 Model  HZS25  HZS35  HZS50  HZS75
 Global parameter  Maximum productivity (m3/h)  25  35  50  75
 Discharging height (m)  1.5–3.8  1.6–3.8  4.2  4.2
 Working cycle time(s)  72  72  72  72
 Outline dimension(mm) 11693 × 13060 × 17245 12922 × 13000 × 17245 15689 × 12500 × 18704 17608 × 12500 × 18704
 Total power (kw)  50  75  88  110
 Mixer  Model  JS500  JS750  JS1000  JS1500
 Batcher  Model  PLD800  PLD1200  PLD1600  PLD2400
 Pneumatic system  Air compressor  1.0–7  1.0–7  1.5–7  1.8–7
 Discharge pressure(MPa)  0.8  0.8  0.8  0.8
 Displacement (m3/min)  1.67  1.67  1.67  1.67
 Motor power  5.5  5.5  7.5  11
 Measurement system  Aggregate weighing accuracy  ±2%  ±2%  ±2%  ±2%
 Cement weighing accuracy  ±1%  ±1%  ±1%  ±1%
 Water weighing accuracy  ±1%  ±1%  ±1%  ±1%
 Additive weighing accuracy  ±1%  ±1%  ±1%  ±1%
