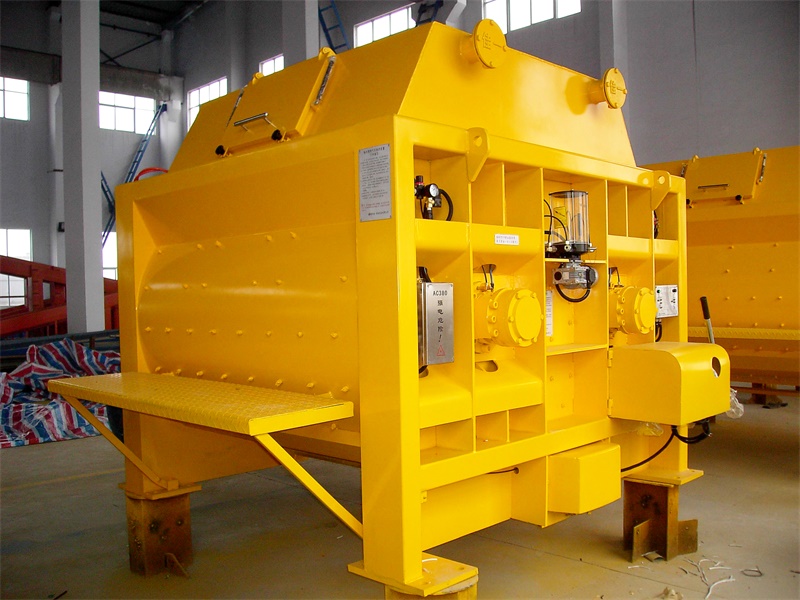

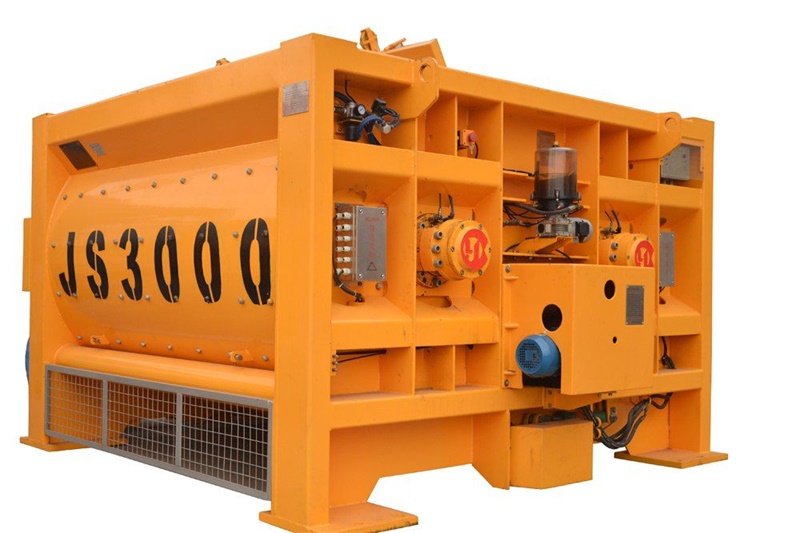

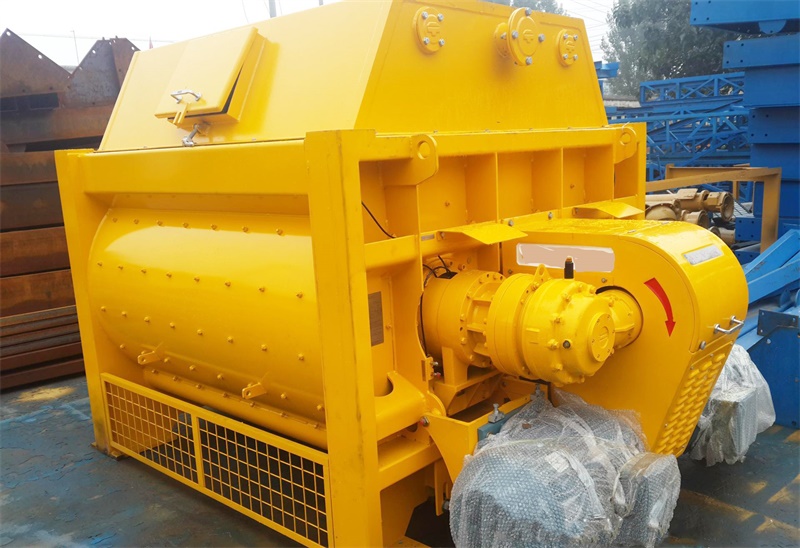

JS3000 Concrete Mixer

  • Model: JS3000
  • Discharging capacity: 3000L
  • Drum capacity: 4800L
  • Productivity (m3/h ): ≥150
  • Max.aggregate size (Cobble/Crushed Stone)(mm): ≤80/120
  • Operation Recycle Time(S): 60
  • Dimension Transport State (mm): 4050*2680*2150
  • Weight(kg): 9200

JS3000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 180m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.

It can work independently or in HZS180 concrete batching plant with PLD4800 batching machine.

  1. Made of high-resistant manganese steel Great power & High productivity with large capacity.
  2. Four pump cores supply oil directly to shafts’ end lower failure rate of lubricating system .
  3. Easy to observe with simple design.

 Model  JS3000
 Discharging capacity  3000L
 Drum capacity  4800L
 Productivity (m3 /h )  ≥150
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤80/120
 Operation Recycle Time(S)  60
 Dimension Transport State (mm)  4050*2680*2150
 Weight(kg)  9200
 Mixing Blade Rotate Speed  21r/min
 Mixing Blade Number  2×10
 Mixing Motor Model  Y280L-6
 Mixing Motor Power  2×55
 Discharging Height  4300mm
