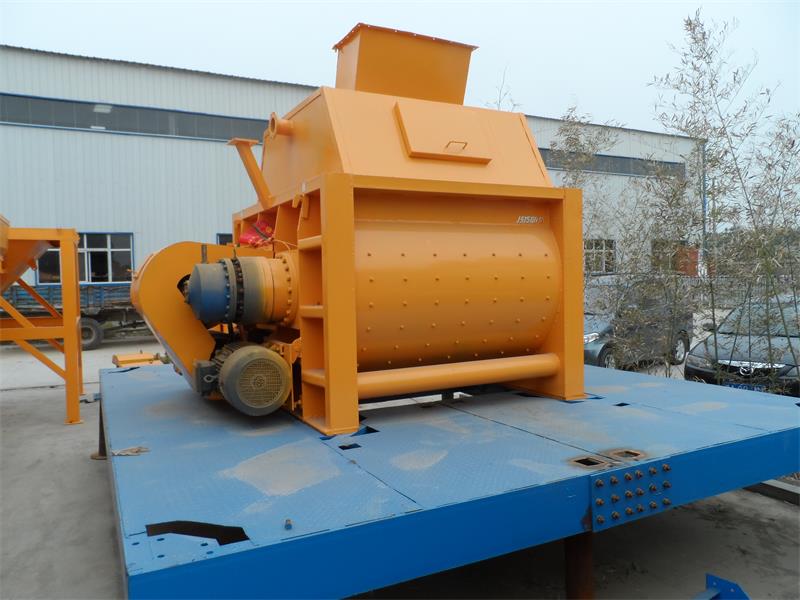

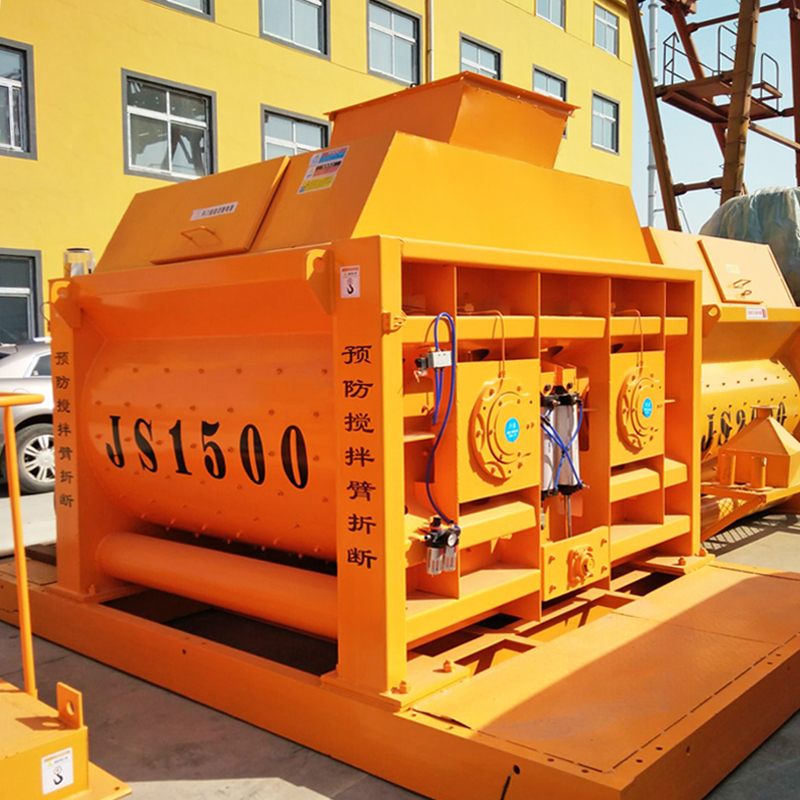

JS1500B Concrete Mixer

  • Model: JS1500B
  • Discharging capacity: 1500L
  • Drum capacity: 2400L
  • Productivity (m3/h ): ≥90
  • Max.aggregate size(Cobble/Crushed Stone)(mm): ≤60/80
  • Operation Recycle Time(S): 60
  • Dimension Transport State (mm): 4720*2200*3000
  • Mixing Blade Rotate Speed: 23.5r/min

JS1500B is twin shaft horizontal forced type mixer worked with belt conveyor. It discharges 1.5 cube materials every time and can mix dry hard concrete, plastic concrete, flowing concrete and various mortar.

It can work independently or in HZS90 concrete batching plant with PLD2400 batching machine.

  1. Adopted with three pumps system. Its hydraulic circuit is in mutual non-interference during system operation.
  2. With remote control function. Its operation can be more safety and convenient.
  3. With anti-pumping function. Its concrete conveying pump can timely do troubleshooting and shutdown to wait for material discharging.
  4. Applied with long stroke. It can extend material cylinder and piston service life.
  5. Automatically and centralized lubrication system can guarantee efficient lubrication during machine operation.
  6. All the spare parts of concrete conveying pump adopted are in accordance with national standard and with good interchangeability.

 Model  JS1500B
 Discharging capacity  1500L
 Drum capacity  2400L
 Productivity (m3 /h )  ≥90
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤60/80
 Operation Recycle Time(S)  60
 Dimension Transport State (mm)  4720*2200*3000
 Mixing Blade Rotate Speed  23.5r/min
 Mixing Blade Number  2×8
 Mixing Motor Model  Y180M-4
 Mixing Motor Power  2×22
 Water Pump Motor Model  80JDB-45
 Water Pump Motor Power  3kw
 Discharging Height  3800mm
