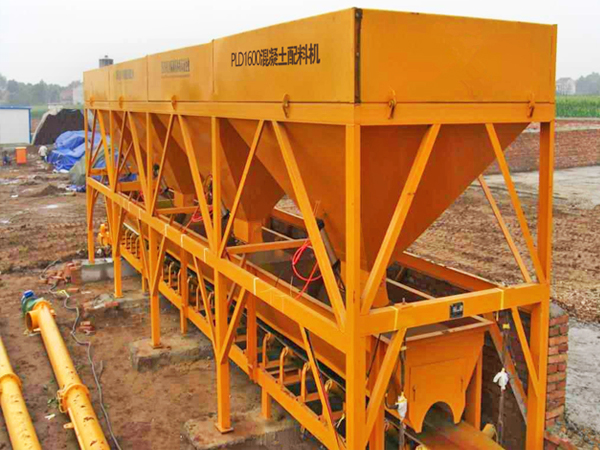

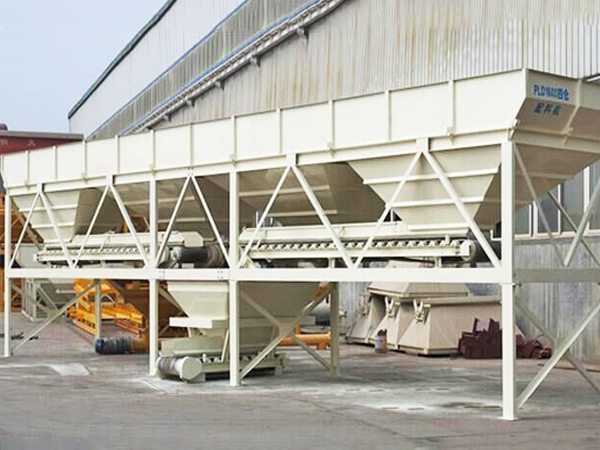

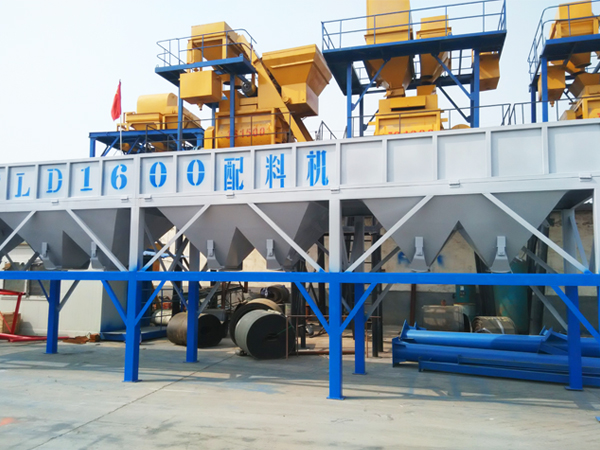

PLD1600 Concrete Batcher(4 hoppers)

  • Accumulated weighing with 4 hoppers
  • Model: PLD1600
  • Volume of Weighing hopper: 1600L
  • Storage bin capacity: 15m3×4
  • Productivity(drier): 80m3/h
  • Maximum weighing magnitude: 3000kg
  • Kinds of batching aggregate: 2-4
  • Transition belt speed: 1.25m/s
  • Power (kw): 3×4+5.5=17.5
  • Total weight (kg): 5600
  • Outline dimension (mm): 9500×2000×3600

The PLD series concrete batching machines consists of feeding system, weighing system and electric control system, it is applicable in different situation, such as bridges and road construction and residential , commercial, industrial constructions.

PLD1600 Concrete Batching Machine( accumulated weighing with 4 hoppers ) accomplish the batching procedure of 4 kinds of materials.

  1. Automatic batching equipment.
  2. The machine adopts detachable structure, which makes it easy to be fed.
  3. It can batch several kinds of materials automatically according to the mixture ratio set by users.
  4. Electric weighing with a sensor has advantages of accurate weighing and precise batching. And with strong microcomputer control system, users can operate it just with a key.
  5. A cover at the top of belt machine can prevent spilling effectively.
  6. Easy to clean, maintain and service.
  7. This series product has many styles and can make up different types of concrete mixer plant with the JS series concrete mixer as your need. And it is convenient for moving and installation. Meanwhile, the price of the batching machine is just 1/2 to 1/3 of the batching plant of same standard.

After-sale service:

Installation; Debugging; Training; Maintenance.

  • A.When training your operators, our engineer will give them advice on how to operate the machines correctly and provide the construction program.
  • B.We will send you the operation manual which can help you operate the machines properly and solve some common problems.
  • C.Call us at any time if you have problem with our concrete plant.
  • D.If necessary, we will send engineers to your site to solve your problem.

Model  PLD1600
 Volume of Weighing hopper  1600L
 Storage bin capacity  15m3×4
 Productivity(drier)  80m3/h
 Batching accuracy  ±1%
 Maximum weighing magnitude  3000kg
 Kinds of batching aggregate  2-4
 Feeding height  3000mm
 Transition belt speed  1.25m/s
 Power (kw)  3×4+5.5=17.5
 Total weight (kg)  5600
 Outline dimension (mm)  9500×2000×3600
