Characteristics and Construction of Mobile Concrete Mixing Plant

Post time: 2019-02-11 14:27 Post category:

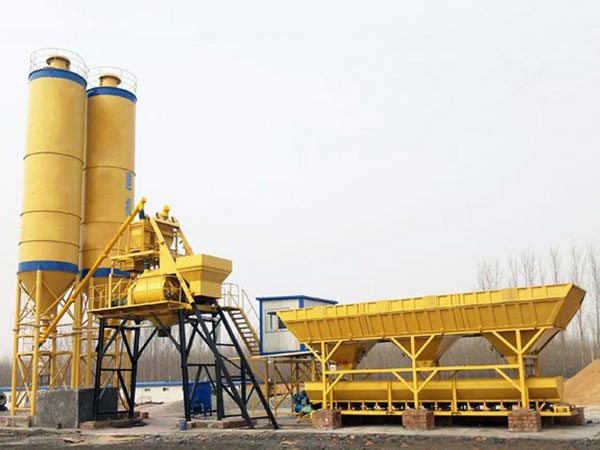

Mobile concrete mixing plant is a special form of concrete mixing plant. The mobile concrete mixing plant is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control system of the concrete mixing station with a concrete unit of a trailing unit; it is with all the fixed automatic mixing station Action process, mode of operation, maintenance exactly the same; at the same time with mobile flexibility, easy and easy disassembly, storage management simple and unique characteristics.

Mobile concrete mixing plant referred to as mobile mixing station. It consists mainly of six parts:

1. Host chassis: cantilevered stirring host chassis, the chassis contains a trailer truck trailer pin, parking legs; installed on the chassis mixer, cement and water admixture of the measurement said; attached to the patrol station, railings, etc. The

2. Control room: the control room in the bottom of the host chassis, built-in mixing station automatic control system, the control system and fixed mixing station the same, the working state when the control room as the whole station before the support point, transfer control room Stored in the bracket within the air; all of its control lines without demolition.

3. Aggregate Ingredient Metering: This system is located in the back of the station, the upper part of the aggregate (sand, stone) storage hopper, storage hopper can be divided into 2 or 4 cells, and set up high plate to increase the storage capacity, Pneumatic in turn open the door operation, aggregate measurement for a variety of materials accumulated measurement. The bottom is equipped with a walking leg and a working leg.

4. Belt Conveyor Rack: The rack is a truss structure that connects the host chassis and the aggregate dosing frame, and the belt rack is built. The main frame, the belt frame and the batching frame are combined to form the main structure of the whole moving mixing station

5. Peripheral components: for the cement warehouse and screw conveyor, peripheral components, whether work or transport are the whole parts, no dismantling can be the overall transport, disassembly.

6. Mixing host: JS-type forced mixer, can be quickly and evenly complete the mixing of dry and dry concrete.

At present, the mobile concrete mixing plant is divided into two types: traction type and trailer type. The traction chassis has a complete front and rear axle. The trailing chassis is only the rear axle, and the front end is placed on the saddle bridge. Its main features are mainly three aspects.

1, removable fast, easy to move

2, other performance and mode of operation, the principle with the fixed standard mixing station (see HZS concrete mixing plant)

3, mobile mixing station All parts of the transport unit dimensions are smaller than the container empty size requirements, the whole station transport to be three 40-foot container.

Mobile concrete mixing station as a special form of concrete mixing plant is a public railway, bridges, ports, hydropower and other projects in the construction of the best optimal model.
