35m³/h Concrete Batching Plant

  • HZS35 Concrete Mixing Plant
  • Maximum productivity(m³/h): 35.
  • Discharging height(m): 1.6-3.8.
  • Working cycle time(s): 72.
  • Outline dimension(mm): 12922×13000×17245.
  • Total power (kw): 75.
  • Total weight: 23T.

TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.

In addition, the capacity  of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

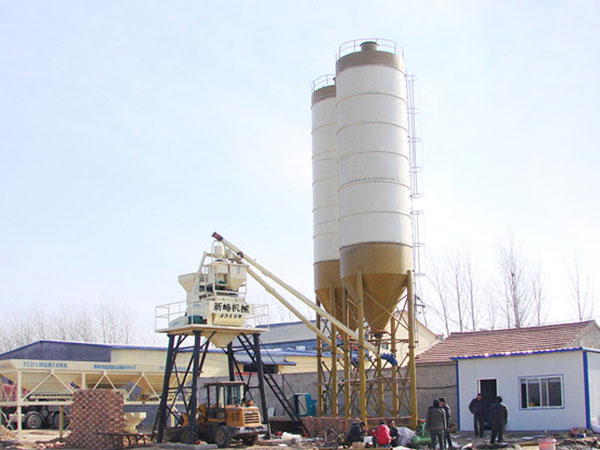

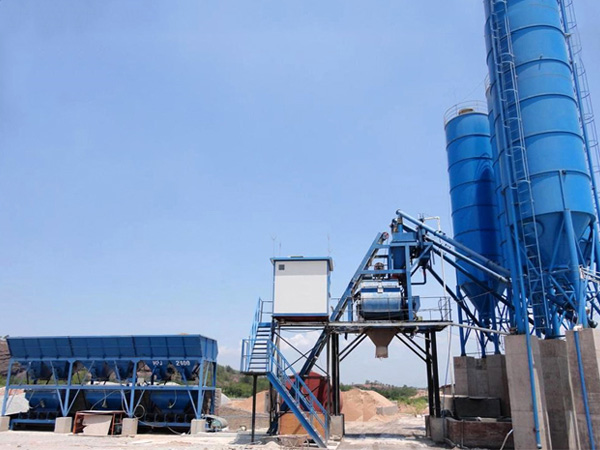

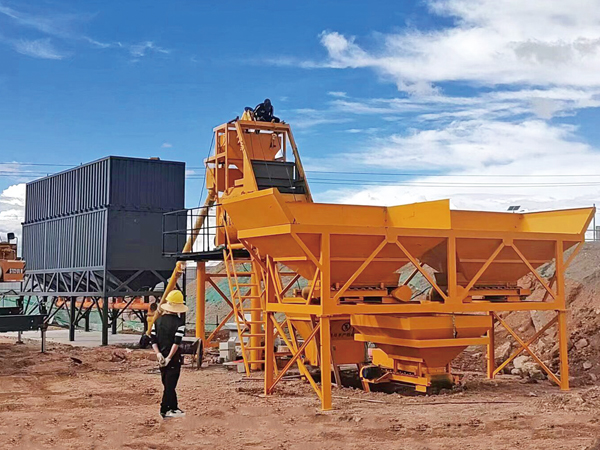

HZS 35 Concrete Batching Plants are composed of mixing, batching and electrical control system etc. It is suitable for small-scale construction site.

Main features:

  • Theory Capacity:35m³/h

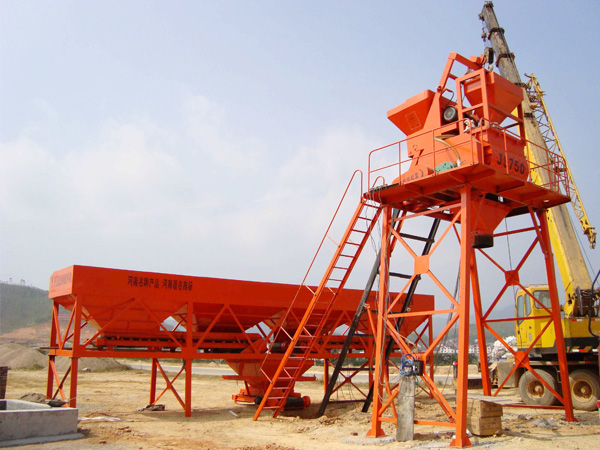

  • The Host is used JS 750 twin-shaft forced type concrete mixer which has  good mixing quality and high efficiency.
  • The Batching Machine of ingredients has high measurement accuracy and production efficiency.
  • Cement water liquid additive ingredients are used in electronic scales of measurement high dosing accuracy.
  • Siphon pump pressurized water system uses the principle of the water flow speed spray evenly.
  • Electrical control system main components are all imported reliable performance easy operation the print function.
  • Control system:PC+PLC control system ensures high reliability Simple/Standard for optional as your requirements.

The options of different layout is according to the requirements of customers.

The quantity of cement silo and screw conveyor can be choosed by users.

Modular design can save space and easy to install and remove.

Model  HZS35
 Global parameter (m3/h)  Maximum productivity  35
 Discharging height(m)  1.6–3.8
 Working cycle time(s)  72
 Outline dimension(mm)  12922×13000×17245
 Total power (kw)  75
 Mixer  Model  JS750
 Batcher  Model  PLD1200
 Pneumatic system  Air compressor  1.0–7
 Discharge pressure(MPa)  0.8
 Displacement(m3/min)  1.67
 Motor power  5.5
 Measurement system  Aggregate weighing accuracy  ±2%
 Cement weighing accuracy  ±1%
 Water weighing accuracy  ±1%
 Additive weighing accuracy  ±1%
 Total weight  23T
