75m³/h Concrete Batching Plant

  • HZS75 Concrete Mixing Plant
  • Maximum productivity(m³/h): 75
  • Discharging height (m): 4.2
  • Working cycle time(s): 72
  • Outline dimension (mm): 17608×12500×18704
  • Total power (kw): 110
  • Total weight: 37T

with high performance cost ratio for construction projects

TRUSEEN can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

TRUSEEN has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h with one mixer. In addition, the capacity of Stationary Concrete Batching Plants can be from 240 m³/h to 360 m³/h with double mixers on the same chassis.

HZS75 concrete batching plant is one of the best-selling plant. It is suitable for small-scale construction site.

Theory Capacity: 75m³/h

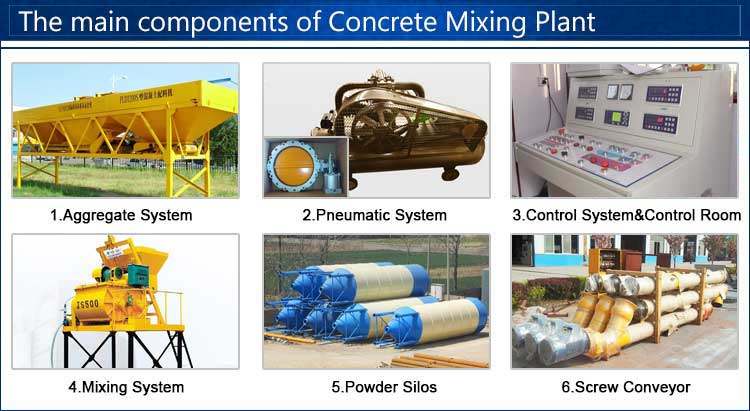

It is composed of mixingmaterial batching and electrical control system etc.

Host using JS 1500 twin-shaft forced type concrete mixer good mixing quality and high efficiency.

Hopper feeder ensures small layout room under limited cost making whole plant easily working effective.

Electrical control system main components are all imported reliable performance easy operation the print function.

Aluminum alloy butterfly valve & accurate weighing device work automatically with PLD1600 feeder/PLC+PC system.

The Quantity of cement silo and screw conveyor can be choosed by users.

Modular Design is easy to install and remove.

All above features spark HZS75 automatically. It also has best cost performance.

Model  HZS75
 Global parameter (m3/h)  Maximum productivity  75
 Discharging height(m)  4.2
 Working cycle time(s)  72
 Outline dimension(mm)  17608×12500×18704
 Total power (kw)  110
 Mixer  Model  JS1500
 Batcher  Model  PLD2400
 Pneumatic system  Air compressor  1.8–7
 Discharge pressure(MPa)  0.8
 Displacement(m3/min)  1.67
 Motor power  11
 Measurement system  Aggregate weighing accuracy  ±2%
 Cement weighing accuracy  ±1%
 Water weighing accuracy  ±1%
 Additive weighing accuracy  ±1%
 Total weight  37T
