Central Mix Concrete Plant

  • Excellent manufacturing team with experience of over 20 years.
  • All can be customized to meet your needs&boost productivity.
  • Passed CE&ISO9001:2008 quality attestation.
  • Long-term cooperated transport company ensure the timely and safe delivery.
  • One-stop service save your precious time.
Leave Message Chat Online

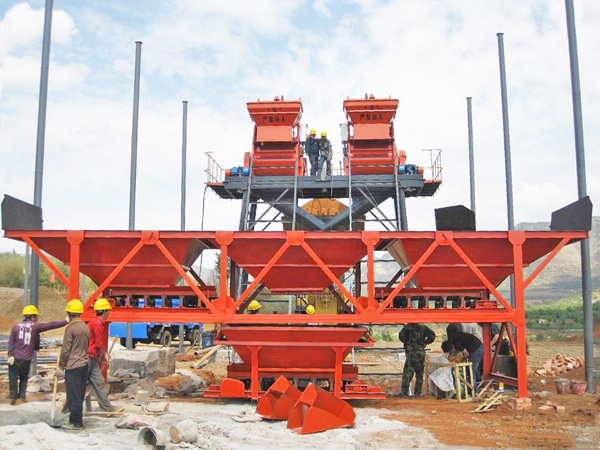

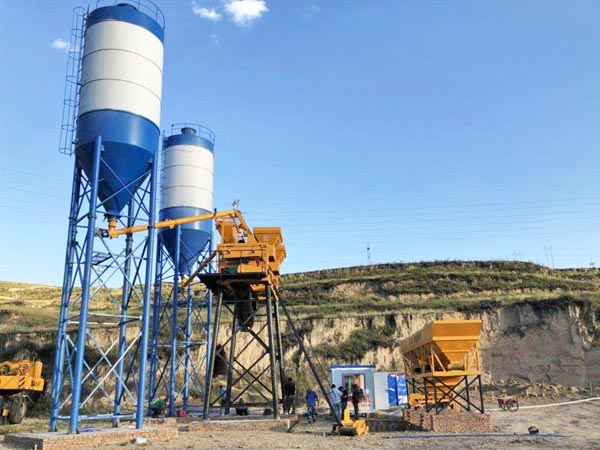

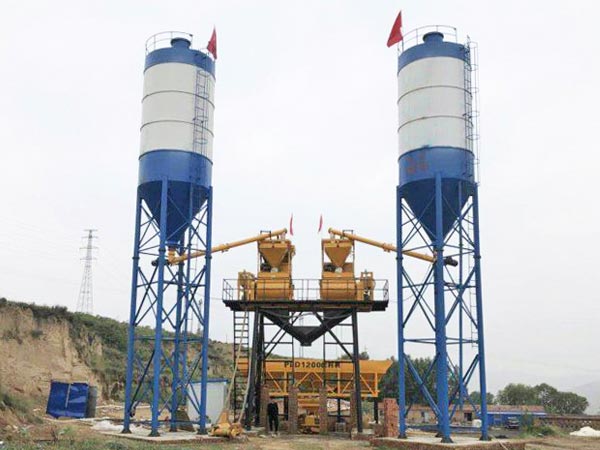

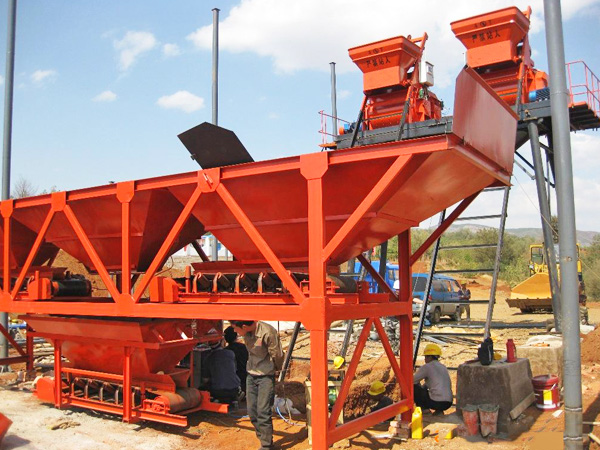

Central mix concrete plants adopt advanced technology and now they have been widely exported into worldwide countries. Due to the competitive price and high quality, the equipment is very popular both home and abroad. Central mix concrete plants adopt JS twin-shaft mixer so it can mix both dry-hard concrete and plastic concrete . What’s more, due to its high working efficiency and large capacity output the Central mix concrete plants is widely used in large and medium sized construction, like road, bridge, railway and others. In short the central concrete batch plant is ideal equipment for users to buy.

  • The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.
  • With compact structure of modular organization which can meet the requirements of container transport and is convenient for transport and quick installation dis-assembly.
  • Aggregate lifting appliance adopts frequency control thus providing smooth and reliable operation.
  • Lubrication system adopts advanced centralized oil lubricating system convenient for oil supplying this system is equipped with over voltage warning and low oil level warning safe and reliable.

Model  HZS25-2  HZS35-2  HZS50-2  HZS75-2
Global parameter (m3/h) Maximum productivity  50  70  100  150
Discharging height (m)  1-4.2  1-4.2  1-4.2  1-4.2
Working cycle time (s)  72  72  72  72
Outline dimension (m)  11×12.7×17.25  11×12.7×17.25  11×13.7×18.25  12×13.7×18.25
Total power (kw)  70.5  108  125  155
Mixer Model  JS500*2  JS750*2  JS1000*2  JS1500*2
Batcher Model  PLD800  PLD1200  PLD1600  PLD2400
Pneumatic system Air compressor  0.9-3  0.9-3  0.9-3  1.2-3
Discharge pressure (MPa)  0.8  0.8  0.8  0.8
Displacement (m3/min)  1.67  1.67  1.67  1.67
Motor power  7.5*2  7.5*2  7.5*2  11*2
Measurement  system Aggregate weighing accuracy  ±2%  ±2%  ±2%  ±2%
Cement weighing accuracy  ±1%  ±1%  ±1%  ±1%
Water weighing accuracy  ±1%  ±1%  ±1%  ±1%
Additive weighing accuracy  ±1%  ±1%  ±1%  ±1%
Total weight  20T  28.5T  35.8T  45.6T
