Large Concrete Batching Plant

  • Excellent manufacturing team with experience of over 20 years.
  • All can be customized to meet your needs & boost productivity.
  • Passed CE&ISO9001:2008 quality attestation.
  • Long-term cooperated transport company ensure the timely and safe delivery.
  • One-stop service save your precious time.
Leave Message Chat Online

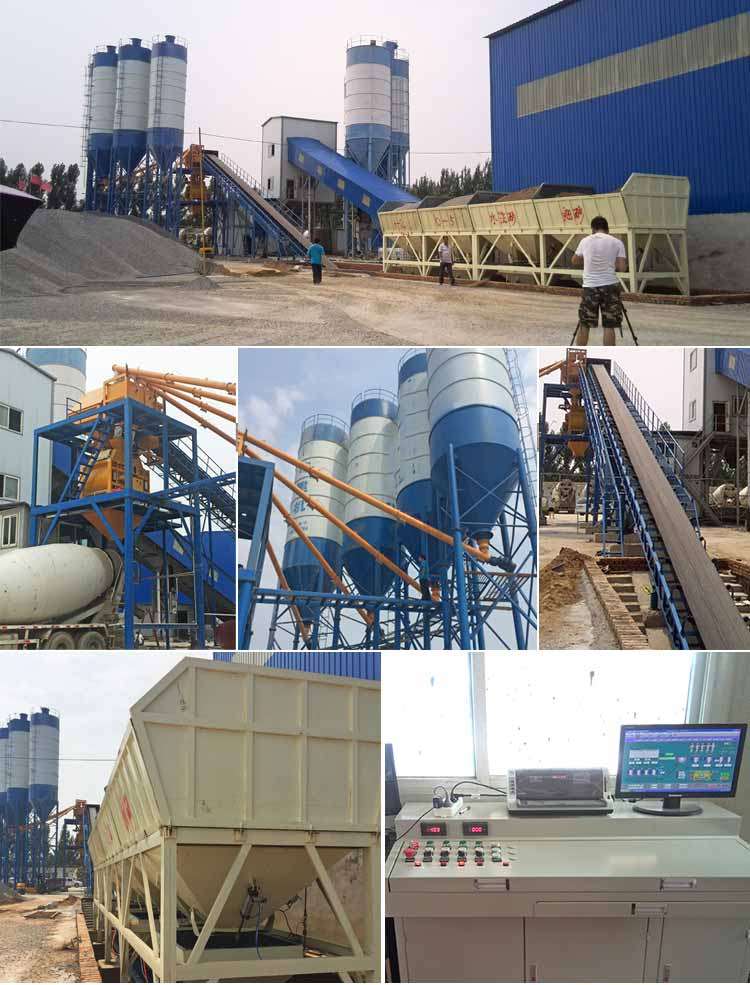

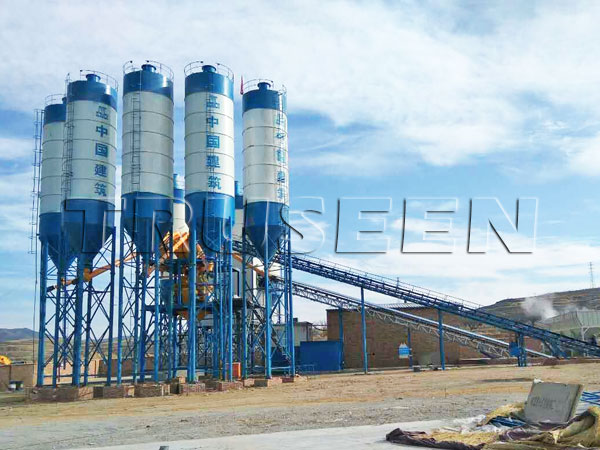

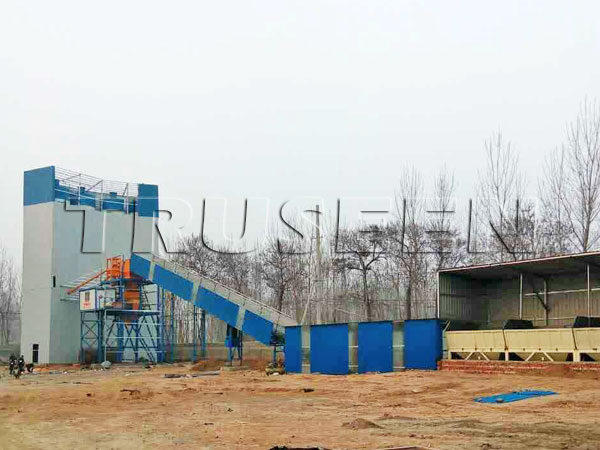

  • The HZS series Belt Conveyor Type concrete batching plant  can produce plastic concrete and dry concrete efficiently. It is an ideal equipment to produce commercial concrete.

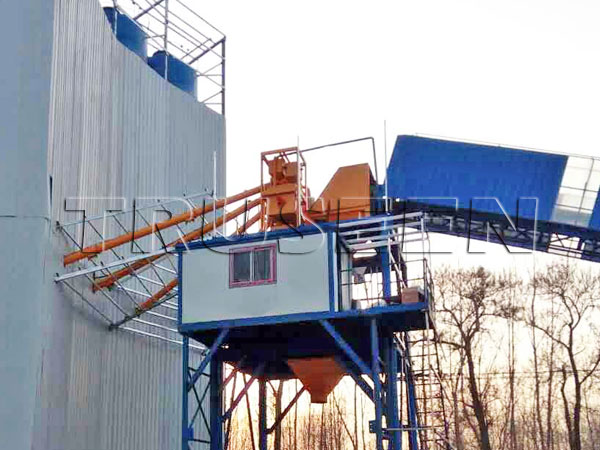

  • The plant adopts the JS series twin-shaft concrete mixer which has lots of advantages such as mixing easily and efficiently . It has long operating life facilitating maintenance etc.
  • The mixer uses the latest design procedures including electronic weighing microcomputer control digital display calculating accurately. The material loading system is also the ideal choice for producing high quality concrete.

 Model  HZS60  HZS90  HZS120  HZS180
 Global parameter (m3/h)  Maximum productivity  60  90  120  180
 Discharging height(m)  4.2  4.2  4.2  4.2
 Working cycle time(s)  60  60  60  60
 Outline dimension(mm) 58445 × 12376 × 18704 58555 × 12376 × 18704 60210 × 13700 × 18704 62900 × 15000 × 19500
 Total power (kw)  105  145  210  288
 Mixer  Model  JS1000  JS1500  JS2000  JS3000
 Batcher  Model  PLD1600  PLD2400  PLD3200  PLD4800
 Pneumatic system  Air compressor  1.5–7  1.8–7  1.8–7  1.8–7
 Discharge pressure(MPa)  0.8  0.8  0.8  0.8
 Displacement(m3/min)  1.67  1.67  1.67  1.67
 Motor power  7.5  11  11×2  11×2
 Measurement system  Aggregate weighing accuracy  ±2%  ±2%  ±2%  ±2%
 Cement weighing accuracy  ±1%  ±1%  ±1%  ±1%
 Water weighing accuracy  ±1%  ±1%  ±1%  ±1%
 Additive weighing accuracy  ±1%  ±1%  ±1%  ±1%
 Total weight  36T  46T  52T  70T
