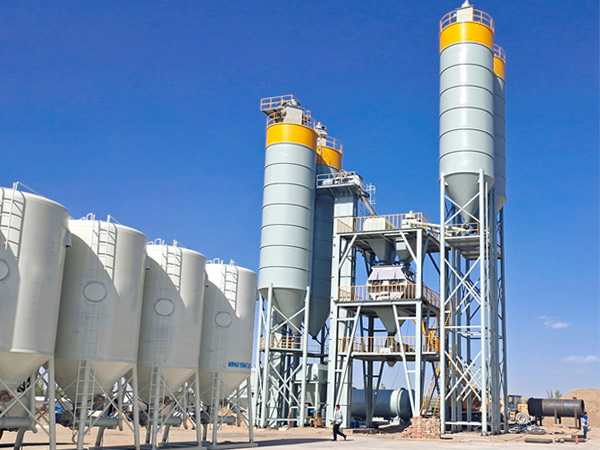

Full Automatic Dry Mortar Mixing Plant

  • Capacity: 10-25 tons /hour
  • Produced mortar type: masonry mortar, plastering mortar, insulated masonry mortar, decorated mortar and other special mortar.
  • Power: 18.5-75 kw
  • Full -automatic electric operation with PLC/PC control
  • Excellent mixing performance
  • Eollecting dust efficiently, environmental protection

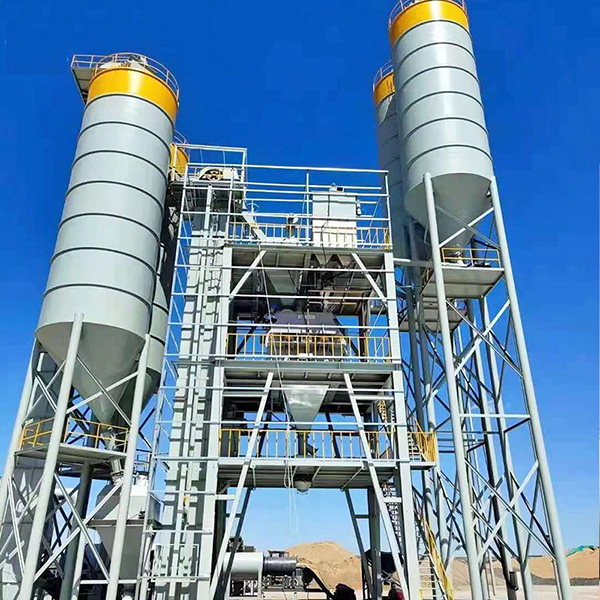

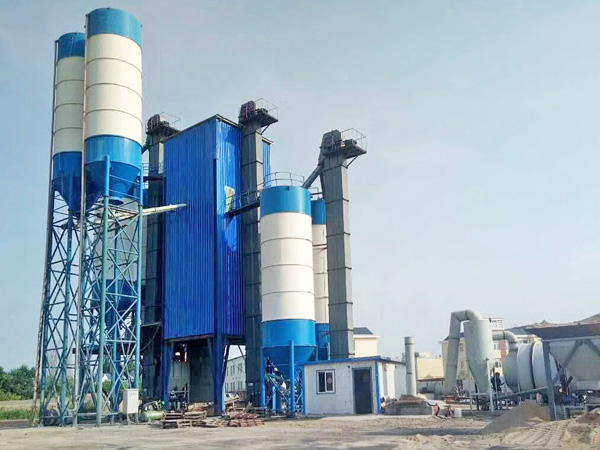

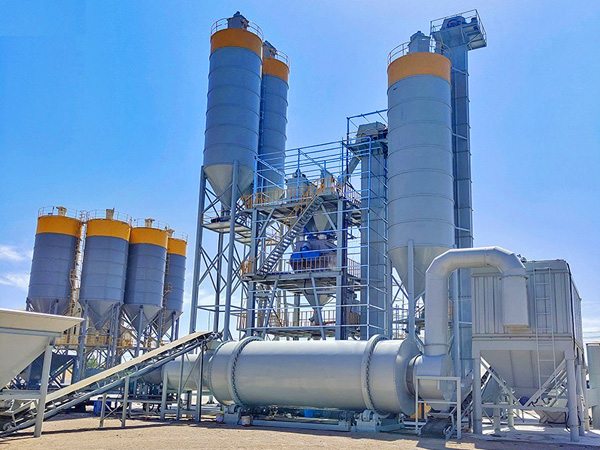

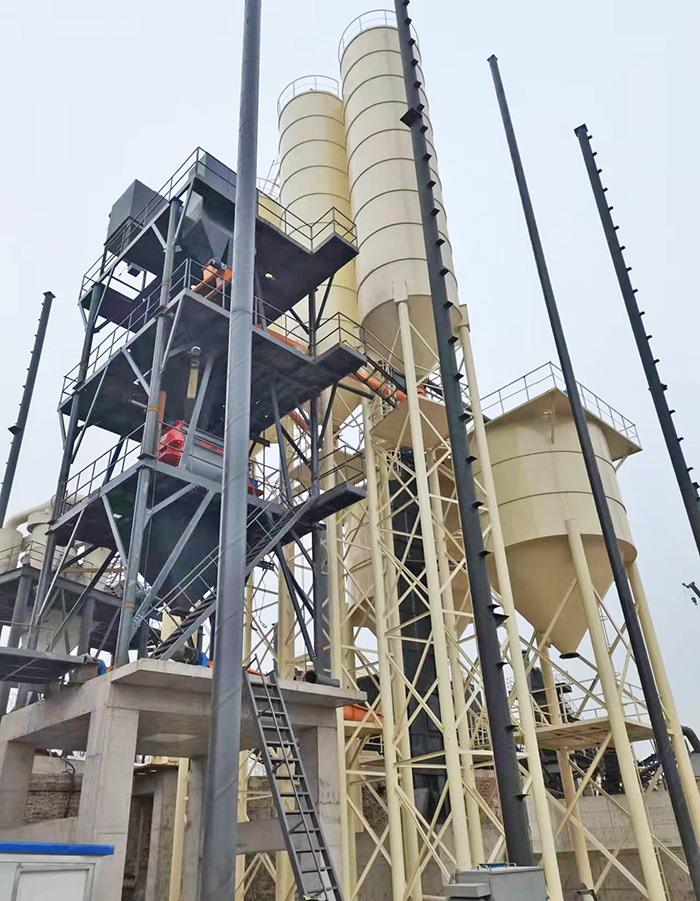

Full Automatic Dry Mortar Mixing Plant adopts a tower layout, the management system is implanted with the latest modular management technology, the man-machine dialogue function and automation are greatly improved. According to different configurations, the dry mortar plant can produce 100,000-500,000 tons per year.

The automatic dry powder mortar production line is mainly composed of a raw material storage system, batching weighing system, conveying system, mixing system, pneumatic system, packaging system and dust removal system. We can design individual production processes according to customer requirements.

Features of Full Automatic Dry Mortar Mixing Plant:

  1. Full -automatic electric operation with PLC/PC control, automatic feeding, automatic mixing, automatic unloading.
  2. Adopt double shaft gravityless dry mortar mixer machine, dust will never enter the bearing, and the practical life is long.
  3. Excellent mixing performance with high efficiency and high productivity.
  4. Adopting cloth bag dust collector, collecting dust efficiently, environmental protection.
  5. Top high speed lump breaker device for de-agglomeration requirement.
  6. Less space demand, super property and low production cost.
  7. Convenient structures for disassembly.

Application of dry powder mortar plant:

  1. Bonding mortar: tile adhesive, jointing agent, special adhesive mortar for thermal insulation composite system, etc.
  2. Masonry mortar: ordinary masonry mortar, special thin mortar for concrete blocks, thermal insulation masonry mortar, etc.
  3. Decorative mortar: exterior wall paint mortar, decorative plaster, inner and outer wall putty, colorful decoration mortar, etc.
  4. Protective mortar: waterproof mortar, anti-corrosion mortar, mildew-proof mortar, self-leveling mortar, wear-resistant mortar, sound insulation mortar, etc.

Model FullVolume(M³) MixingPower(KW) Dimension(MM) Weight(kg)
WZ-2 2 18.5 2200×2400×1600 2800
WZ-3 3 22 2300×2300×1620 4200
WZ-4 4 22 2680×2400×1850 4500
WZ-5 5 37 2950×3050×2040 6000
WZ-6 6 45 3050×3250×2100 7000
WZ-10 10 55 3550×3150×2400 8000
WZ-12 12 55 4695×3180×2500 10500
WZ-15 15 55 4180×3960×2600 10000
WZ-20 20 75 5700×3700×2500 13000
