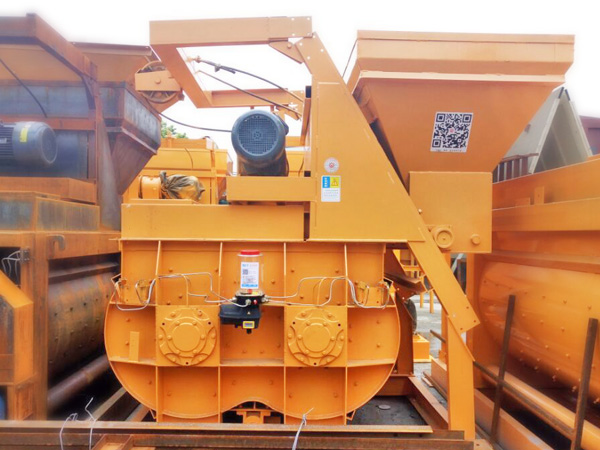

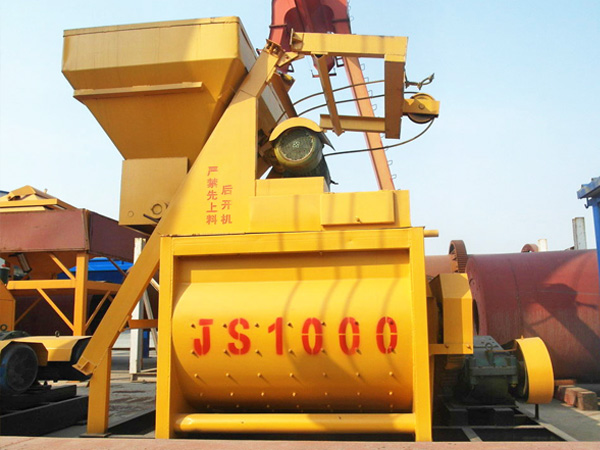

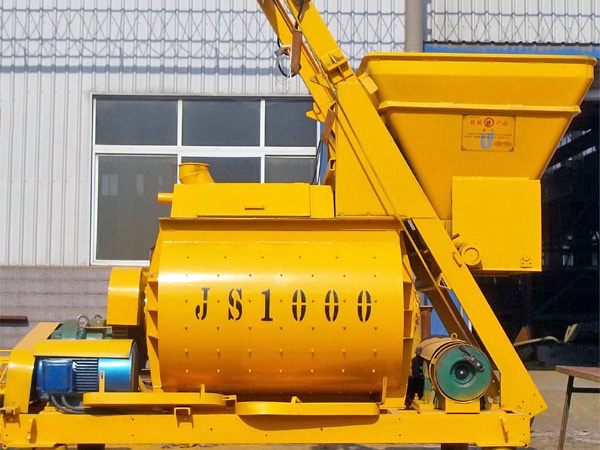

JS1000A Concrete Mixer

  • Model: JS1000A
  • Discharging capacity: 1000L
  • Drum capacity: 1600L
  • Productivity(m3/h): ≥50
  • Operation Recycle Time(S): 60
  • Dimension Transport State(mm): 4320*2200*3300
  • Weight(kg): 8700

JS1000A concrete mixer can mix the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete. It is often used to build roads, bridges, ports or other construction projects.

It can work independently or in HZS50/60 concrete batching plant with PLD1600.

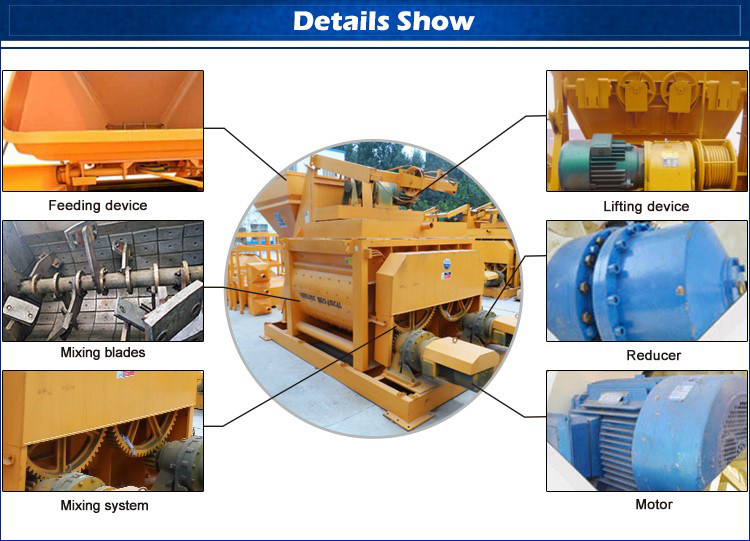

Mixing Drum:

High-resistant manganese steel alloys;

Twin shafts:

mix aggregates compulsively and evenly.

Twin Motors and Reducers:

meet different needs of mixer in rev speed & power; Simple structure & low cost.

Hydraulic Discharging:

Great power and high efficiency; Push discharging door smoothly to reduce the damage of discharging door.

 Model  JS1000A
 Discharging capacity  1000L
 Drum capacity  1600L
 Productivity (m3 /h )  ≥50
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤60/80
 Operation Recycle Time(S)  60
 Dimension Transport State (mm)  4320*2200*3300
 Dimension Work State (mm)  10460*3400*9050
 Weight(kg)  8700
 Mixing Blade Rotate Speed  29.6r/min
 Mixing Blade Number  2×8
 Mixing Motor Model  Y180M-4
 Mixing Motor Power  2×18.5
 Winch Motor Model  YEZ160L-4
 Winch Motor Power  13kw
 Water Pump Motor Model  80JDB-45
 Water Pump Motor Power  3kw
 Discharging Height  3800mm
