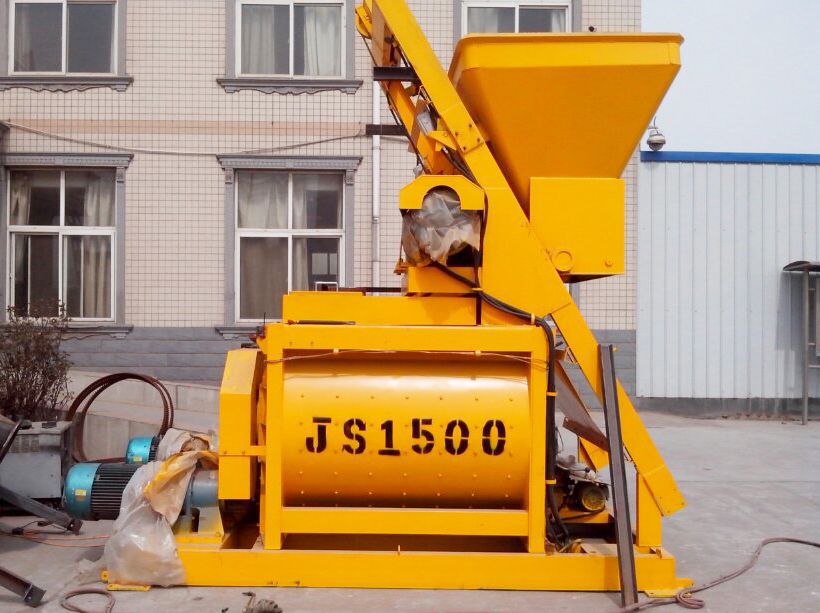

JS1500A Concrete Mixer

  • Model :JS1500A
  • Discharging capacity :1500L
  • Drum capacity: 2400L
  • Productivity(m3/h): ≥75
  • Max.aggregate size(Cobble/Crushed Stone)(mm): ≤60/80
  • Operation Recycle Time(S) :60
  • Dimension Transport State (mm) :4720*2200*3000
  • Weight(kg) :8700

JS1500A Concrete Mixer is twin shaft horizontal forced type mixer equipped with skip hoist. It can mix dry hard concrete, plastic concrete, flowing concrete and various mortar. It is often used to build roads, bridges, ports and other construction projects.

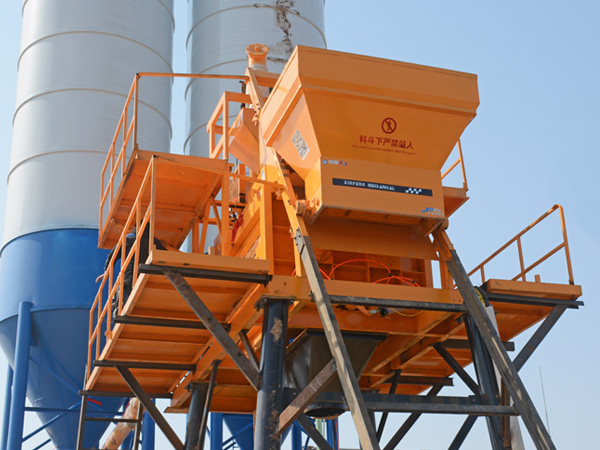

It can work independently or in HZS75 concrete batching plant with PLD2400 batching machine.

Mixing Drum:

High-resistant manganese steel alloys;

Twin shafts:

mix aggregates compulsively and evenly.

Twin Motors and Reducers:

meet different needs of mixer in rev speed & power; Simple structure & low cost .

Hydraulic Discharging:

Great power andhigh efficiency; Push discharging door smoothly to reduce the damage of discharging door.


 Model  JS1500A
 Discharging capacity  1500L
 Drum capacity  2400L
 Productivity (m3 /h )  ≥75
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤60/80
 Operation Recycle Time(S)  60
 Dimension Transport State (mm)  4720*2200*3000
 Weight(kg)  8700
 Mixing Blade Rotate Speed  29.6r/min
 Mixing Blade Number  2×8
 Mixing Motor Model  Y180M-4
 Mixing Motor Power  2×18.5
 Winch Motor Model  YEZ132M-4
 Winch Motor Power  13kw
 Water Pump Motor Model  BL18-16-1.1
 Water Pump Motor Power  3kw
 Discharging Height  3800mm
