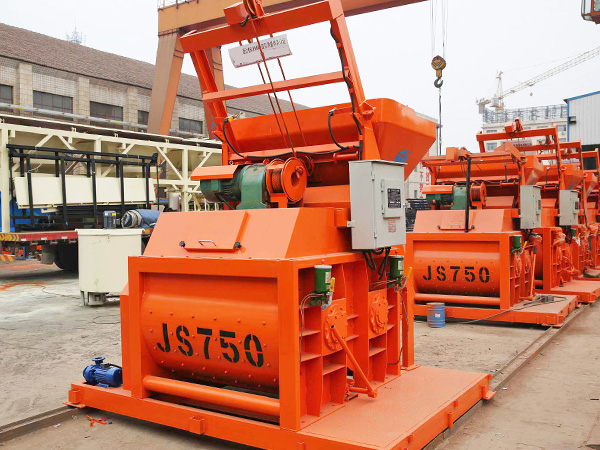

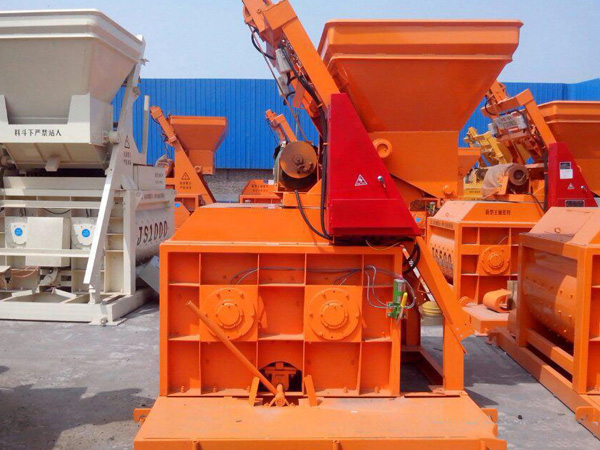

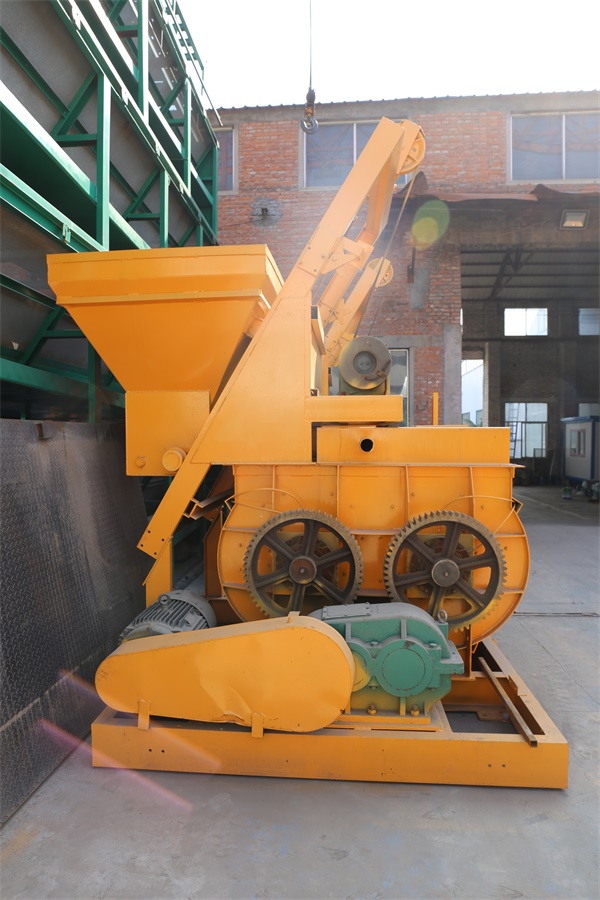

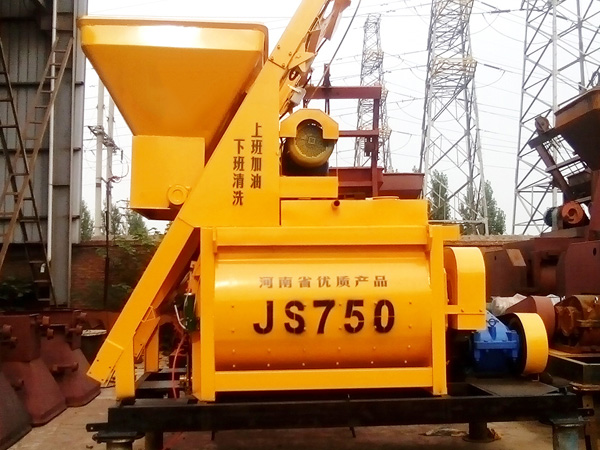

JS750 Concrete Mixer

  • Model: JS750
  • Discharging capacity: 750L
  • Drum capacity: 1200L
  • Productivity(m3/h): ≥35
  • Max.aggregate size(Cobble/Crushed Stone)(mm): ≤40/60
  • Operation Recycle Time(S): 72
  • Dimension Transport State (mm): 3110*2620*2580
  • Weight(kg): 5500

The capacities of TRUSEEN Twin-Shaft Mixers are 750L,1000L,1500L,2000Land 3000L.

JS750 Concrete Mixer is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar.

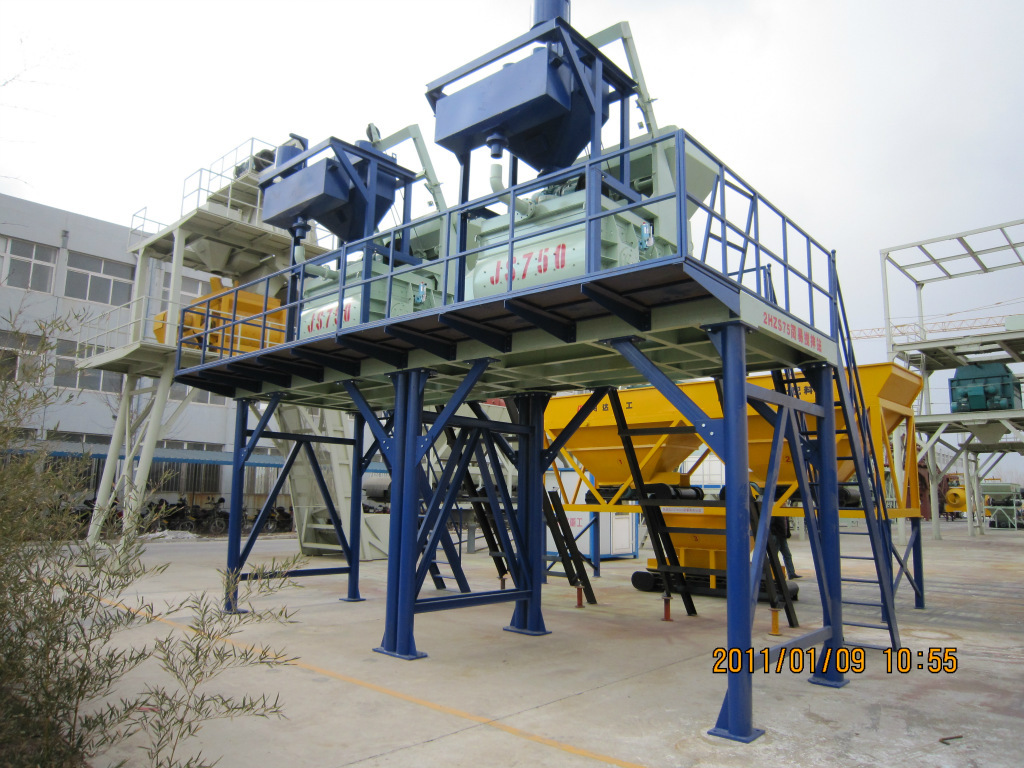

It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine and can also be the mixer for HZS35 concrete batching plant.

It is applicable to the common construction working site like road, bridge and each kind of precast product factory.

They have reasonable instructure ,high production efficiency, drive reposefully and low noise.

 Model  JS750
 Discharging capacity  750L
 Drum capacity  1200L
 Productivity (m3 /h )  ≥35
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤40/60
 Operation Recycle Time(S)  72
 Dimension Transport State (mm)  3110*2620*2580
 Dimension Work State (mm)  5025*3100*5680
 Weight(kg)  5500

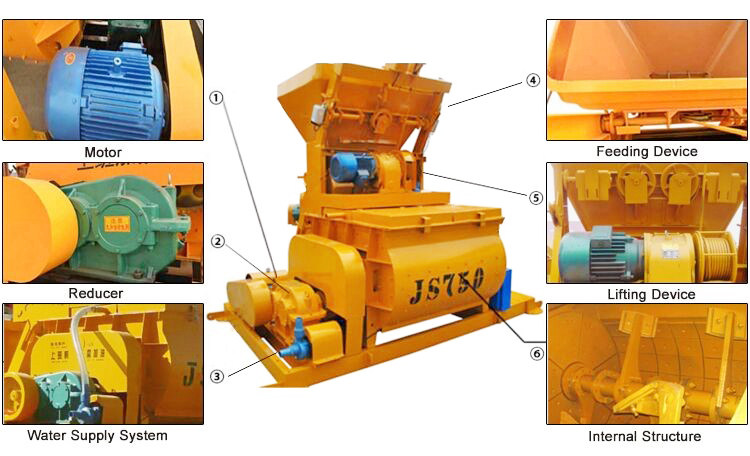

 Mixing Blade Rotate Speed  26r/min
 Mixing Blade Number  2×7
 Mixing Motor Model  Y200L-4
 Mixing Motor Power  30kw
 Winch Motor Model  YEZ132M-4
 Winch Motor Power  7.5kw
 Water Pump Motor Model  BL18-16-1.1
 Water Pump Motor Power  1.5kw
 Discharging Height  3800mm
