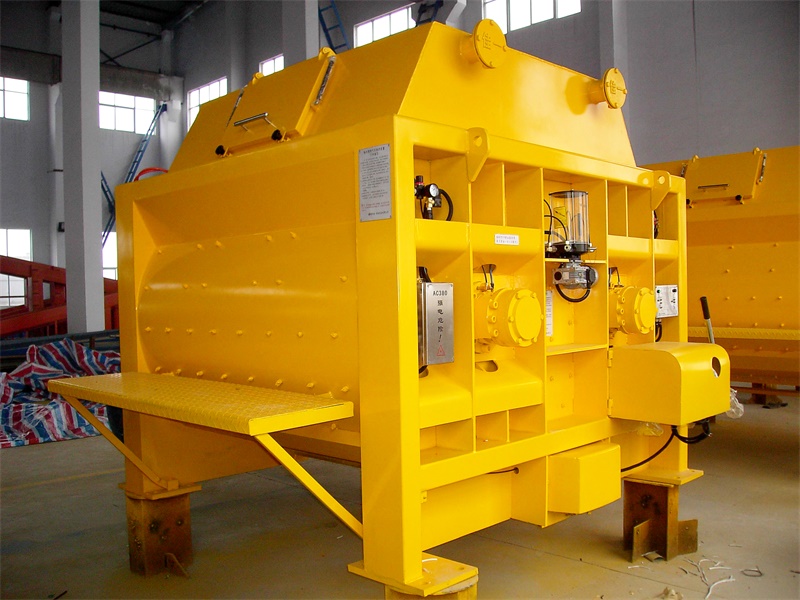

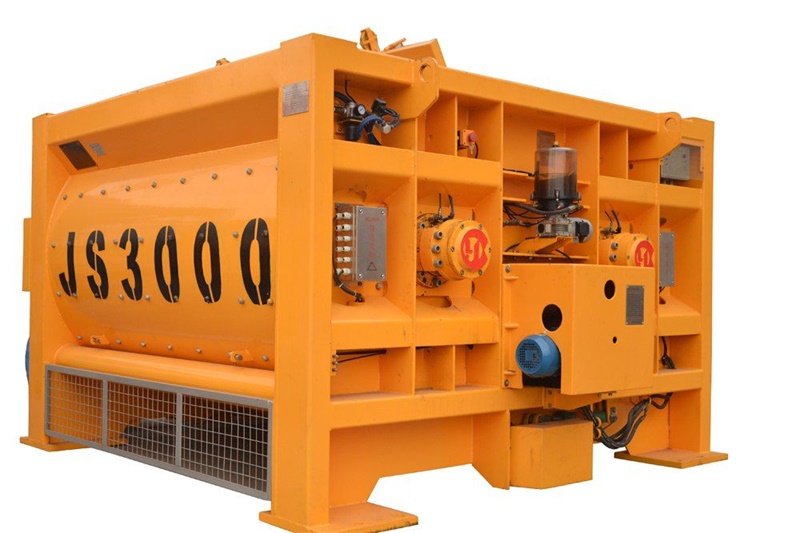

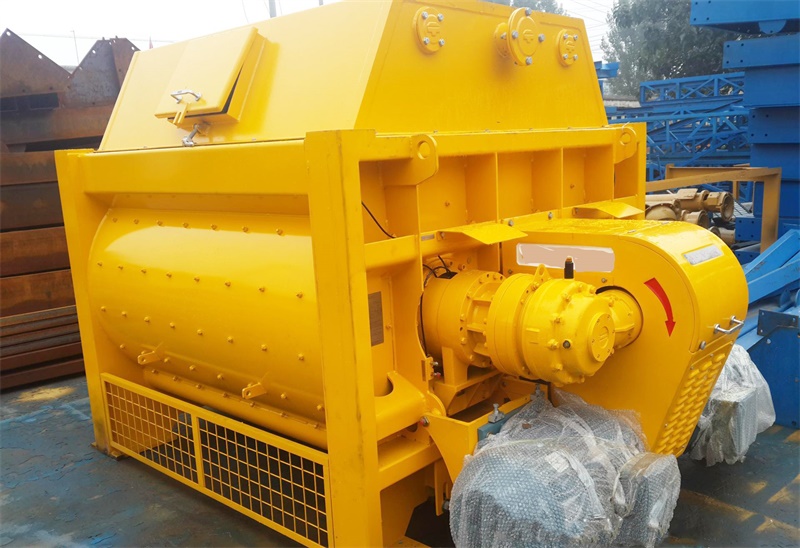

JS3000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 180m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.
It can work independently or in HZS180 concrete batching plant with PLD4800 batching machine.
| Model | JS3000 |
| Discharging capacity | 3000L |
| Drum capacity | 4800L |
| Productivity (m3 /h ) | ≥150 |
| Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤80/120 |
| Operation Recycle Time(S) | 60 |
| Dimension Transport State (mm) | 4050*2680*2150 |
| Weight(kg) | 9200 |
| Mixing Blade Rotate Speed | 21r/min |
| Mixing Blade Number | 2×10 |
| Mixing Motor Model | Y280L-6 |
| Mixing Motor Power | 2×55 |
| Discharging Height | 4300mm |
