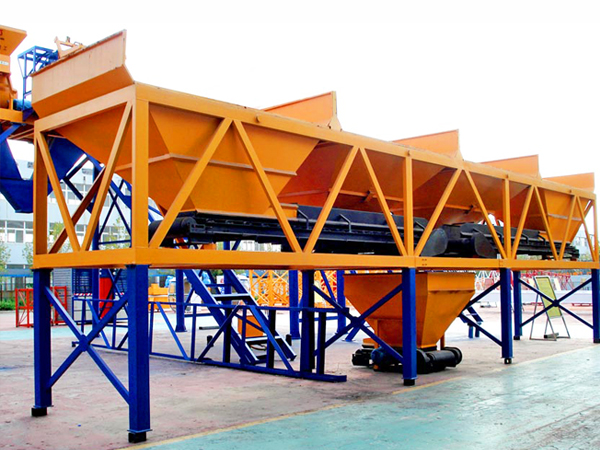

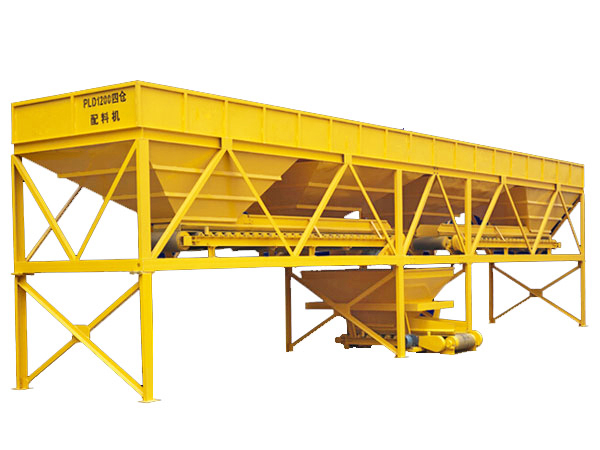

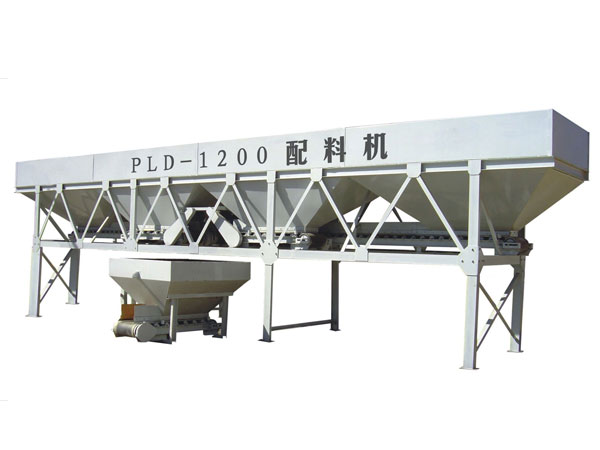

PLD1200 Concrete Batcher 4 hoppers

  • Accumulated weighing with 4 hoppers
  • Model: PLD1200
  • Volume of Weighing hopper: 1200L
  • Storage bin capacity: 2.4m3×4
  • Productivity(drier): 60m3/h
  • Maximum weighing magnitude: 3000kg
  • Kinds of batching aggregate: 2-4
  • Transition belt speed: 1.25m/s
  • Power (kw): 3×4=12
  • Total weight (kg): 4500
  • Outline dimension (mm): 9000×2000×3500

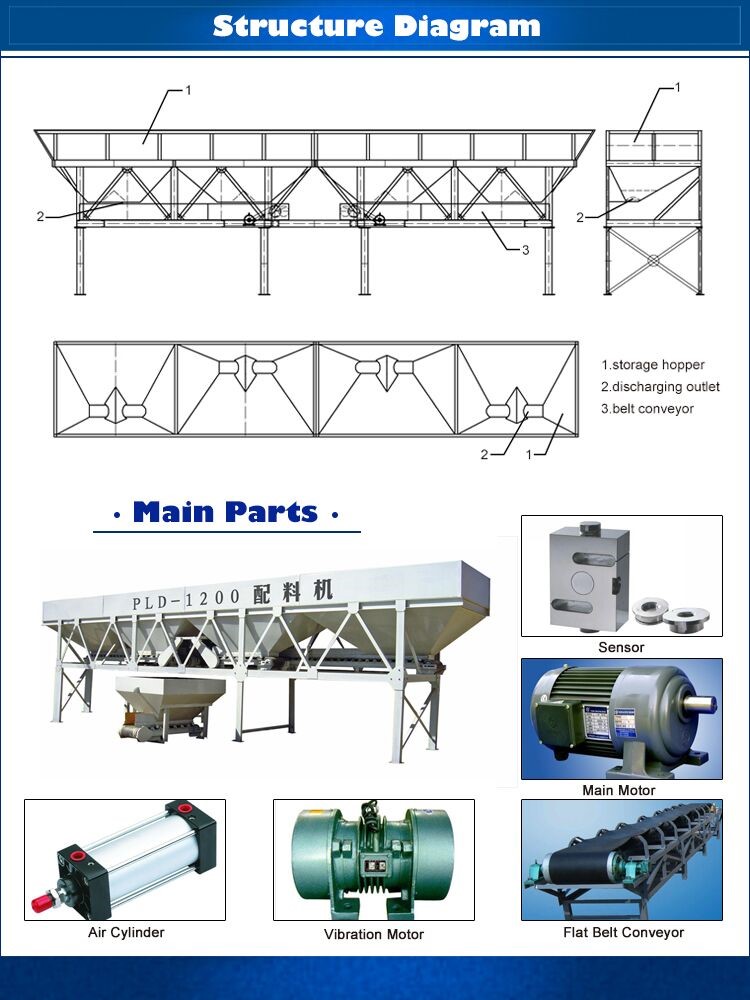

The PLD series concrete batching machines consists of feeding system, weighing system and electric control system, it is applicable in different situation, such as bridges and road construction and residential , commercial, industrial constructions.

PLD1200 Concrete Batching Machine that accumulated weighing with 4 hoppers accomplish the batching procedure of 4 kinds of materials.

  1. Automatic batching equipment.
  2. The machine adopts detachable structure, which makes it easy to be fed.
  3. It can batch several kinds of materials automatically according to the mixture ratio set by users.
  4. Electric weighing with a sensor has advantages of accurate weighing and precise batching. And with strong microcomputer control system, users can operate it just with a key.
  5. A cover at the top of belt machine can prevent spilling effectively.
  6. Easy to clean, maintain and service.
  7. This series product has many styles and can make up different types of concrete mixer plant with the JS series concrete mixer as your need. And it is convenient for moving and installation. Meanwhile, the price of the batching machine is just 1/2 to 1/3 of the batching plant of same standard.

 Model  PLD1200
 Volume of Weighing hopper  1200L
 Storage bin capacity  2.4m3×4
 Productivity(drier)  60m3/h
 Batching accuracy  ±1%
 Maximum weighing magnitude  3000kg
 Kinds of batching aggregate  2-4
 Feeding height  3000mm
 Transition belt speed  1.25m/s
 Power (kw)  3×4=12
 Total weight (kg)  4500
 Outline dimension (mm)  9000×2000×3500
