Separate weighing with 3 hoppers
Volume of Weighing hopper： 2400L
Storage bin capacity： 20m3×3
Maximum weighing magnitude： 4000kg
Kinds of batching aggregate： 2-3
Transition belt speed： 1.6m/s
Power (kw)： 22
Total weight (kg)： 7850
Outline dimension (mm)： 12328×2200×4122

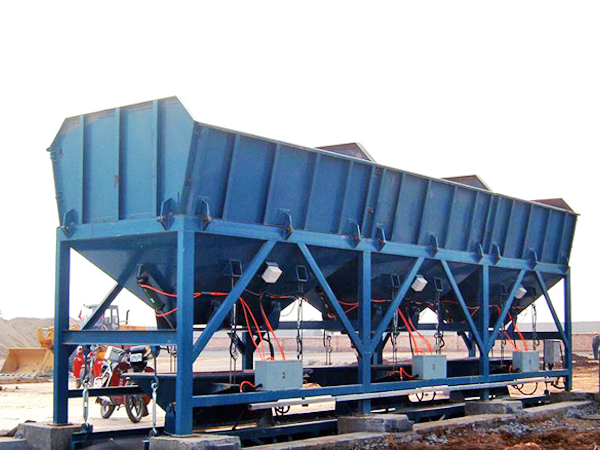

The PLD series concrete batching machines consists of feeding system weighing system and electric control system it is applicable in different situation such as bridges and road construction and residential commercial industrial constructions.

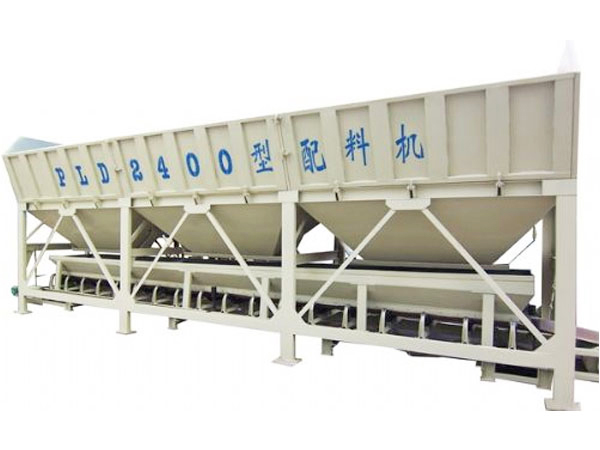

PLD2400 Concrete Batching Machine( separate weighing with 3 hoppers ) accomplish the batching procedure of 3 kinds of materials.
Installation; Debugging; Training; Maintenance.
|Volume of Weighing hopper||2400L|
|Storage bin capacity||20m3×3|
|Maximum weighing magnitude||4000kg|
|Kinds of batching aggregate||2-3|
|Transition belt speed||1.6m/s|
|Total weight (kg)||7850|
|Outline dimension (mm)||12328×2200×4122|
