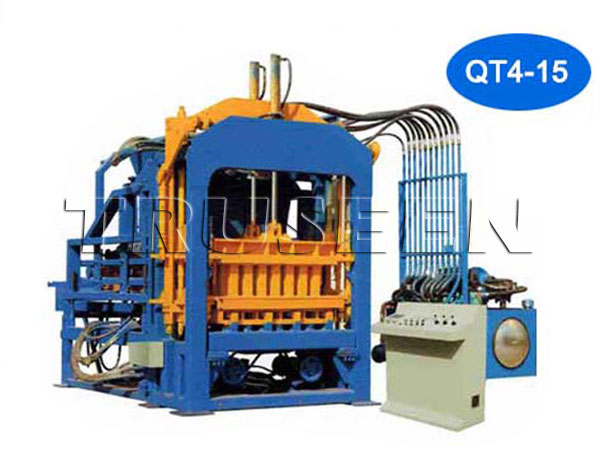

QT4-15 Concrete Block Making Machine

  • Model: QT4-15
  • Exciting force (KN): 50
  • Vibration frequency(HZ): 0-50
  • Power(KW): 10.7
  • Forming type:  Semi automatic loading and molding
  • Forming cycle (S): 20-25
  • Outline dimension: 4388×1660×2100
  • Pallet size: 840×500×20
  • Normal output: 30000

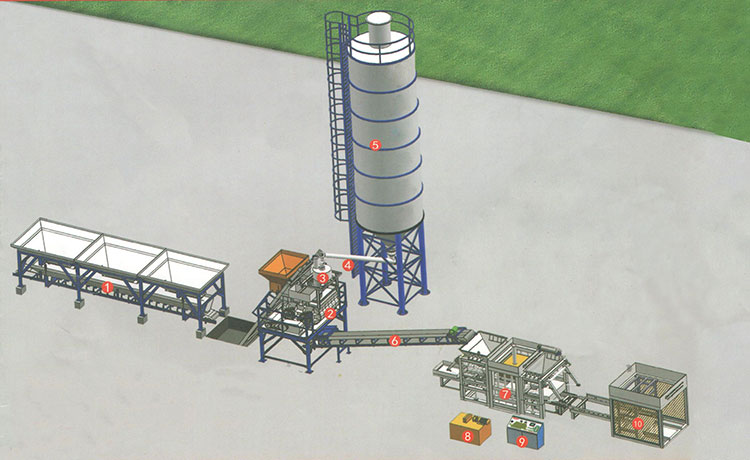

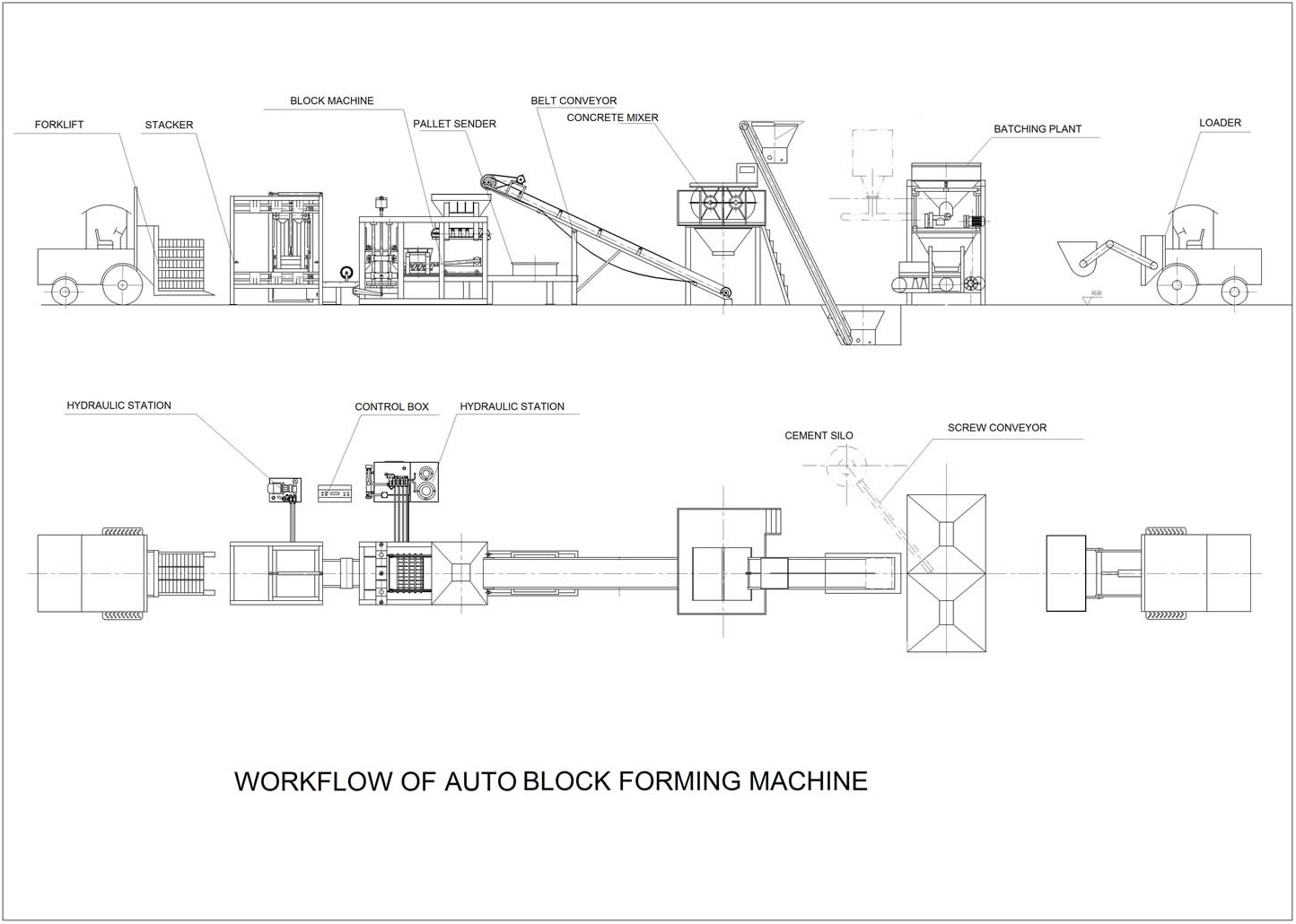

QT4-15 Concrete Block Making Machine is the newest fully automatic block machine .its pressure system become two hydro-cylinder.The lifting speed fast and the pressure function is well. It is fully automatic production lineincluding PLD800 Batching machineJS500 MixerQT4-15 block machine Stacker machine and so on.


Industrial raw materials like gravel sand cement ash cinder slag stone etc.

Usage of production:

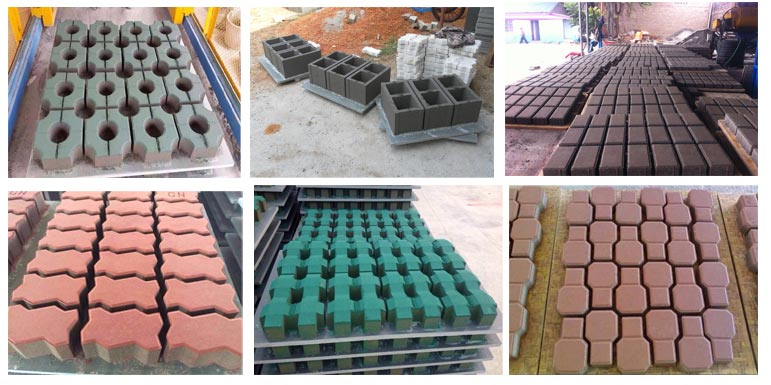

Concrete building cut solid cut hollow cut paving brick-making.


Widely used in construction roads parks greeningurban construction and so on.

 Model  Products  Size  Block Qty/Plate  PCS/Hour  PCS/8Hours
 QT4-15  Hollow Blocks  390×190×190  4  960  7680
 Perforated Blocks  240×115×90  14  3360  26880
 Solid Blocks  240×115×53  28  6720  53760


 Model  QT4-15
 Mixer  JS500
 Batcher  PLD800
 Cement Silo  sheet-assembled 50T
 Screw Conveyer  LSY 219*6m
 Exciting force (KN)  50
 Vibration frequency(HZ)  0-50
 Power(KW)  10.7
 Forming type  Semi automatic loading and molding
 Control type  emi-automatic control PLC
 Forming cycle (S)  20-25
 Outline dimension  4388×1660×2100
 Weight (T)  3
 Pallet size  840×500×20
