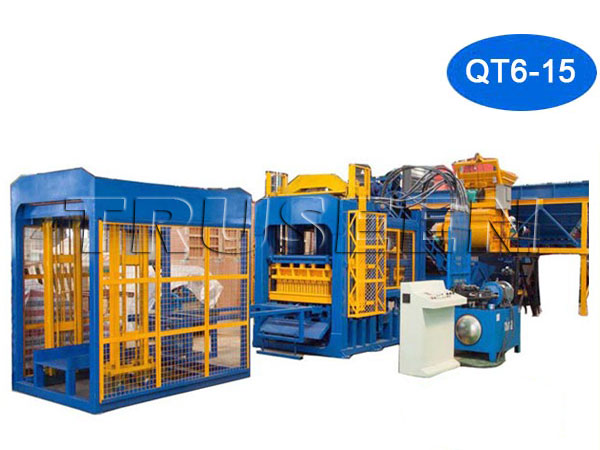

QT6-15 Concrete Block Making Machine

  • Model: QT6-15
  • Exciting force(KN): 60
  • Vibration frequency(HZ): 0-60
  • Power(KW): 34.28
  • Forming type:  Fully automatic loading and molding
  • Forming cycle(S): 15-20
  • Outline dimension: 7160×2000×2800
  • Pallet size: 880×680×20
  • Normal output: 85000
Leave Message Chat Online

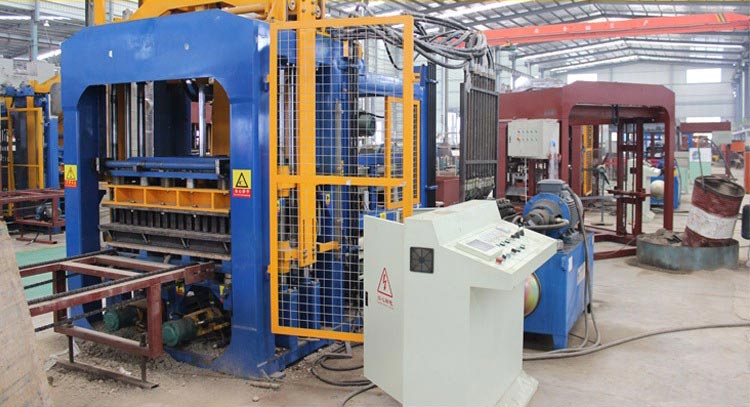

Fully automatic block machine whole production line.

QT6-15 block machine construction needed super parts:

  • Automatic control system
  • PLC control system
  • Hydraulic pressing system
  • High quality, ISO9001 certification
  • Perfect oil system
  • Siemens electronic system
  • Self-diagnose system
  • Multiply-function forming system
  • Frequency vibration system
  • Germany technology

Application:

Widely used in construction, roads, parks, greening,urban construction and so on

Model  Products  Size  Block Qty/Plate  PCS/Hour  PCS/8Hours
 QT6-15  Hollow Blocks  390×190×190  6  1440  11520
 Perforated Blocks  240×115×90  18  4320  34560
 Solid Blocks  240×115×53  30  8640  69120



Model  QT6-15
 Mixer  JS500
 Batcher  PLD800
 Cement Silo  sheet-assembled 50T
 Screw Conveyer  LSY 219*8m
 Power(KW)  34.28
 Forming type  Fully automatic loading and molding
 Control type  PLC Semi-automatic control PLC
 Forming cycle (S)  15-20
 Outline dimension  7160×2000×2800
 Weight (T)  7
 Pallet size  880×680×20
