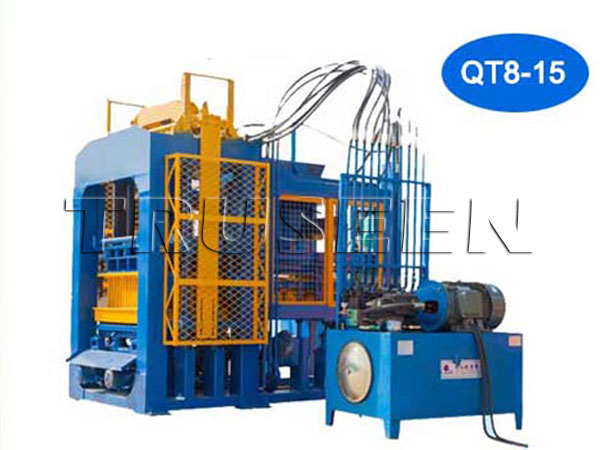

QT8-15 Concrete Block Making Machine

  • Model: QT8-15
  • Exciting force(KN): 80
  • Vibration frequency(HZ): 0-60
  • Power(KW): 40.78
  • Forming type:  Fully automatic loading and molding
  • Forming cycle(S): 15-20
  • Outline dimension: 7500×2100×3020
  • Pallet size: 860×860×20
  • Normal output: 115000
  1. The electrical control system of the QT8-15 Concrete Block Making Machine adopts PLC system the computer interface operation can realize random signal analysis fault diagnosis and parameter setting guarantee the best working effect of the machine.
  2. Material storage device: using the closed belt conveyor strict control of the small hopper discharge so as to send with the use to prevent the impact of the aftershocks of the concrete in advance of liquefaction to ensure product quality and product quality.
  3. Force fast and smooth fabric: fabric box stirring fork 360. Rotary motion so that the fabric is uniform fast and smooth.To avoid the uneven phenomenon of wet material product density is good high quality. Free of material box impactreduce noise prolong its service life.
  4. Unique and efficient vibration mode: the latest technology adjust the speed of the motor to meet and guarantee the vibration of the host in the fabric of different vibration frequency and amplitude thereby improving the quality of the products shorten the molding cycle.
  5. Reasonable vibration distribution: the demolding cylinder will die locking strong vibration on the bedplate stiffness reachTaiwan synchronous vibration the amplitude distribution achieved with a smaller deviation of mold intensity.
  6. Body structure is novel strong: the body uses the high strength steel the use of advanced welding technology welding manufacturing manufacturing quality equipment durable strong stable reliable.
  7. One machine can adapt to the various specifications of hollow blocksolid blocks paver brick curbstone etc.
  8. The machine has compact structure stable performance convenient operation and maintenance small area low investment high efficiency suitable for large medium and small building materials enterprise investment.
 Model  Products  Size  Block Qty/Plate  PCS/Hour  PCS/8Hours
 QT8-15  Hollow Blocks  390×190×190  8  1920  15360
 Perforated Blocks  240×115×90  21  5040  40320
 Solid Blocks  240×115×53  42  10080  80640


 Model  QT8-15
 Mixer  JS750
 Batcher  PLD1200
 Cement Silo  sheet-assembled 100T
 Screw Conveyer  LSY 219*8m
 Forming type  Fully automatic loading and molding
 Control type  PLC Semi-automatic control PLC
 Forming cycle (S)  15-20
 Outline dimension  7500×2100×3020
 Weight (T)  9
 Pallet size  860×860×20
