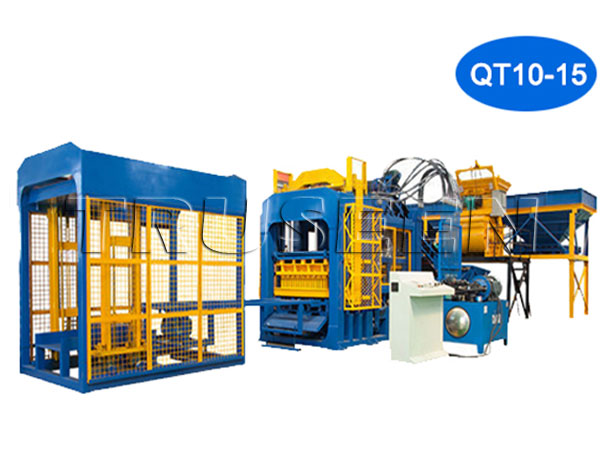

QT10-15 Concrete Block Making Machine

  • Model: QT10-15
  • Exciting force (KN): 100
  • Vibration frequency(HZ): 0-60
  • Power(KW): 52.28
  • Forming type:  Fully automatic loading and molding
  • Forming cycle(S): 15-20
  • Outline dimension: 7500×2500×3020
  • Pallet size: 1220×900×25
  • Normal output: 14000

QT10-15 Fully-auto hydraulic cheap Concrete Block Making Machine:

  1. 360 scatter mixer , greatly inproves the density and intensity of blocks.
  2. Hydraulic system: hydraulic spare parts be ordered according our block machine.
  3. All material and spare parts selected according international CE standard, Carbon dioxide pertection weldig will assure line stable running.
  4. We choose MITSUBISHI / SIEMENS programmable logic controller (PLC)
  5. Mold: newest heat treatment device assure longer mold life.

Model  Products  Size  Block Qty/Plate  PCS/Hour  PCS/8Hours
 QT10-15  Hollow Blocks  390×190×190  10  2400  19200
 Perforated Blocks  240×115×90  24  5760  46080
 Solid Blocks  240×115×53  48  11520  92160



 Model  QT10-15
 Mixer  JS750
 Batcher  PLD1200
 Cement Silo  sheet-assembled 100T
 Screw Conveyer  LSY 219*8m
 Forming type  Fully automatic loading and molding
 Control type  PLC Semi-automatic control PLC
 Forming cycle (S)  15-20
 Outline dimension  7500×2500×3020
 Weight (T)  11
 Pallet size  1220×900×25
