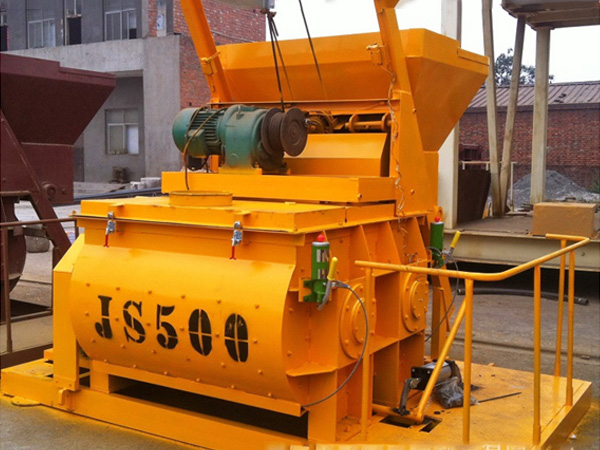

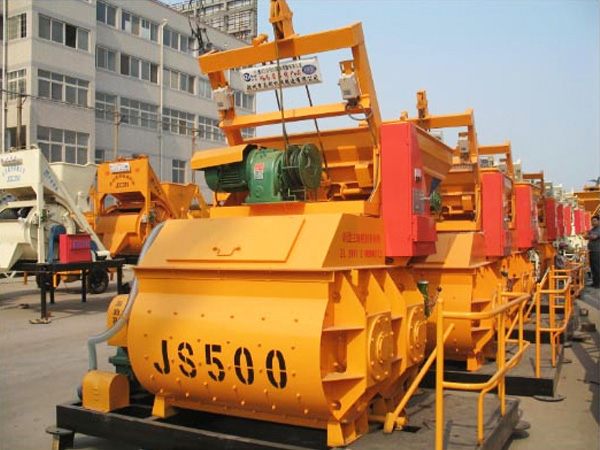

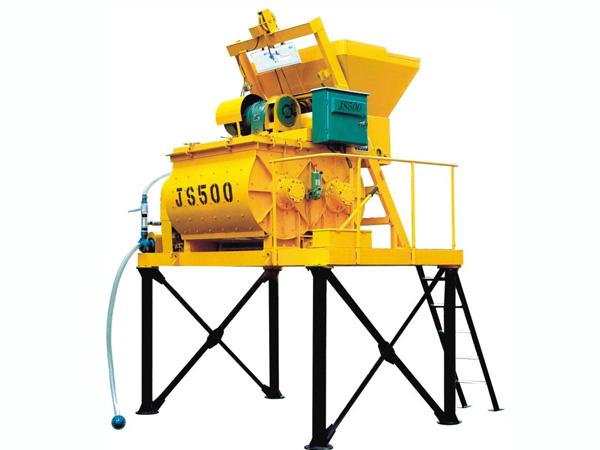

JS500 Concrete Mixer

  • Model： JS500
  • Discharging capacity： 500L
  • Drum capacity： 800L
  • Productivity(m3/h)： ≥25
  • Max.aggregate size(Cobble/Crushed Stone)(mm)： ≤60/80
  • Operation Recycle Time(S)： 72
  • Dimension Transport State (mm)： 3050*2530*2680
  • Dimension Work State (mm)： 4461*3050*4180
  • Weight(kg)： 4000
Leave Message Chat Online

JS500 concrete mixer can mix dry hard concrete plastic concrete flowing concrete light weight aggregate concrete and various mortar.

It could work independently or in HZS25 concrete batching plant with PLD1200. It is widely used in various construction projects with adjustable discharge heights.

Advantages:

  1. As tank body and machine bracket are fixed mixing axle can avoid withstanding the pressure from material and dead weight of tank which expand the service life of mixing axle;
  2. Adopted with electric discharging door to get rid of the disadvantage of any material left by using rotary discharging door; it can offer quick and tidy discharging operation.

 Model  JS500
 Discharging capacity  500L
 Drum capacity  800L
 Productivity (m3 /h )  ≥25
 Max.aggregate size(Cobble/Crushed Stone)(mm)  ≤60/80
 Operation Recycle Time(S)  72
 Dimension Transport State (mm)  3050*2530*2680
 Dimension Work State (mm)  4461*3050*4180
 Weight(kg)  4000
 Mixing Blade Rotate Speed  35r/min
 Mixing Blade Number  2×7
 Mixing Motor Model  Y180M-4
 Mixing Motor Power  18.5kw
 Winch Motor Model  YEZ132S-4
 Winch Motor Power  5.5kw
 Water Pump Motor Model  BL12-12-1.1
 Water Pump Motor Power  1.1kw
 Discharging Height  3800mm
